DC Powered BLE Controls OcuSense (Amaya Pro) (06901)

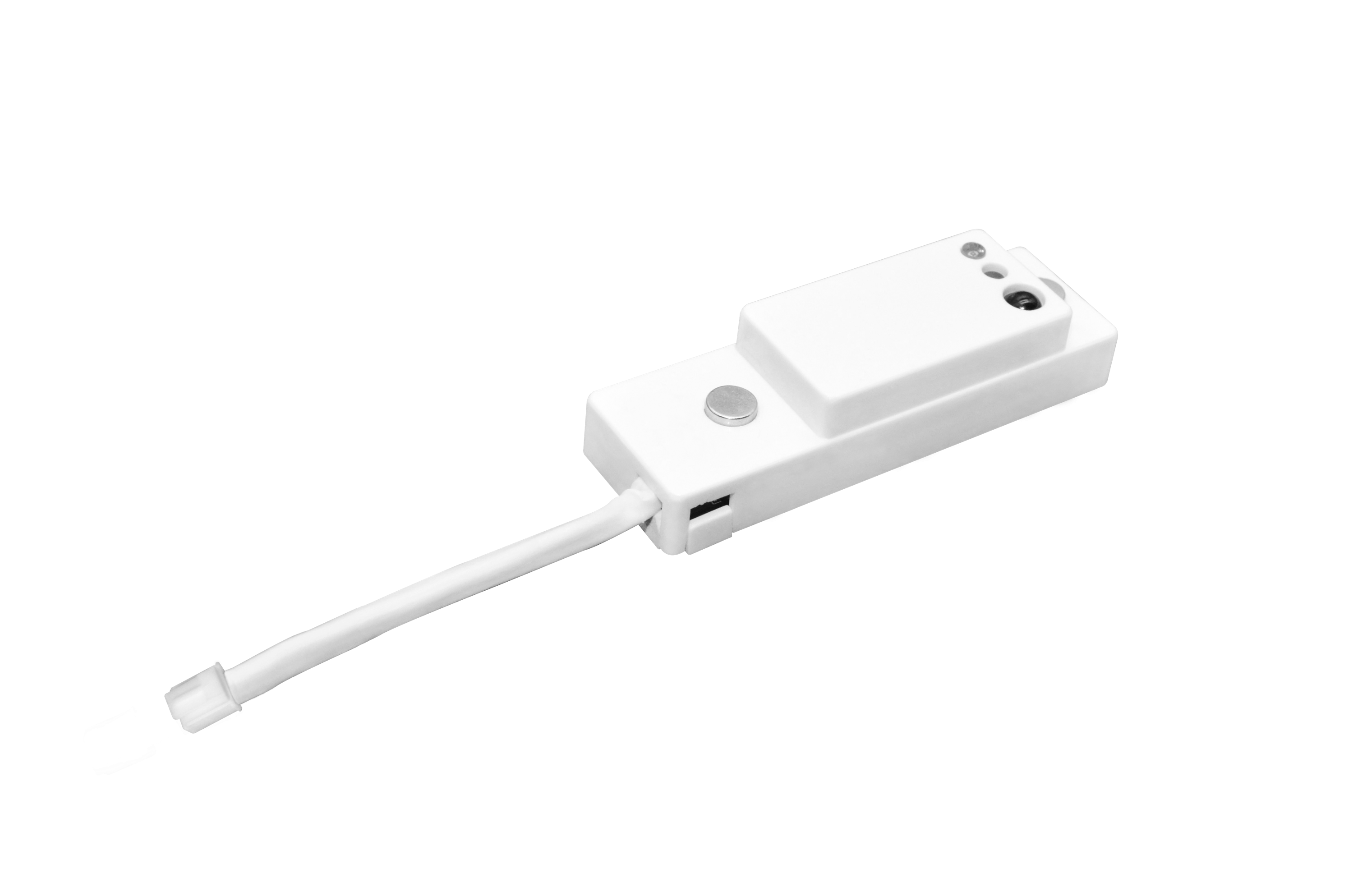

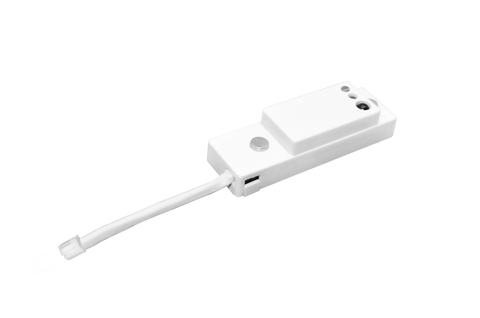

The Amaya Pro DC Powered BLE Controls OcuSense (06901) is an intelligent Bluetooth® Mesh-enabled luminaire-level lighting controller designed to provide advanced occupancy sensing, daylight harvesting, scheduling, and wireless commissioning for commercial indoor lighting applications. Engineered for office spaces, classrooms, healthcare facilities, retail environments, and low-bay applications, this compact sensor enables seamless automation while maximizing energy savings and occupant comfort.
Designed as part of the Amaya Pro Networked Lighting Control (NLC) System, the 06901 communicates through a secure Bluetooth Mesh network, allowing every connected fixture to become part of a scalable lighting ecosystem. Through the Amaya Pro mobile application and cloud-based management portal, facility managers can remotely configure, commission, monitor, and optimize lighting without additional control wiring or centralized gateways.
The integrated OcuSense occupancy sensor continuously detects movement and automatically adjusts lighting levels based on space utilization. Combined with daylight harvesting, high-end trim, bi-level dimming, and scheduling, the controller minimizes unnecessary energy consumption while helping buildings meet modern energy codes and sustainability objectives.
Built with commercial-grade electronics and PSA Certified Level 3 security, the Amaya Pro 06901 delivers dependable long-term performance. Automatic health reporting, remote diagnostics, and wireless firmware management reduce maintenance costs while ensuring reliable lighting operation throughout the facility.
7 Year
Warranty
This product is covered for 7 years under warranty.
Bluetooth Mesh Connectivity
Features secure Bluetooth Mesh networking, enabling wireless communication between lighting devices for scalable and flexible control.
Intelligent Lighting Controls
Combines occupancy sensing, daylight harvesting, and 0–10V dimming to maximize energy savings and occupant comfort.
Features & Benefits
- Wireless Bluetooth® Mesh connectivity enables seamless communication between lighting devices without additional control wiring.
- Integrated OcuSense technology provides reliable occupancy sensing and daylight harvesting to maximize energy savings.
- Configure, commission, and manage lighting through the Amaya Pro mobile application or cloud-based management portal.
- Supports bi-level dimming, high-end trim, scheduling, and personalized lighting preferences for improved occupant comfort.
- Built-in 0-10V (20mA) analog dimming output provides smooth and reliable control of compatible LED drivers.
- Automatic device health monitoring and remote diagnostics simplify maintenance and reduce service time.
- PSA Certified Level 3 security protects network communications with enterprise-grade encryption.
- Ideal for commercial offices, education, healthcare, retail, and other indoor applications.
Construction
- Compact, low-profile commercial-grade enclosure
- Durable indoor-rated housing
- Integrated Bluetooth® Mesh radio
Electrical
- Input Voltage: 10–14V DC
- Dimming Output: 0–10V, 20mA Analog
- Communication Protocol: Bluetooth® Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: -4°F to 140°F
- IP Rating: IP65
- Rated Life: >70,000 Hours
Optics
- Integrated OcuSense occupancy sensor
- 360° detection pattern
- Wide-area motion detection
- Supports daylight harvesting for automatic daylight-responsive dimming
Mounting
Controls
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Limited Product Warranty
Listings & Certifications
