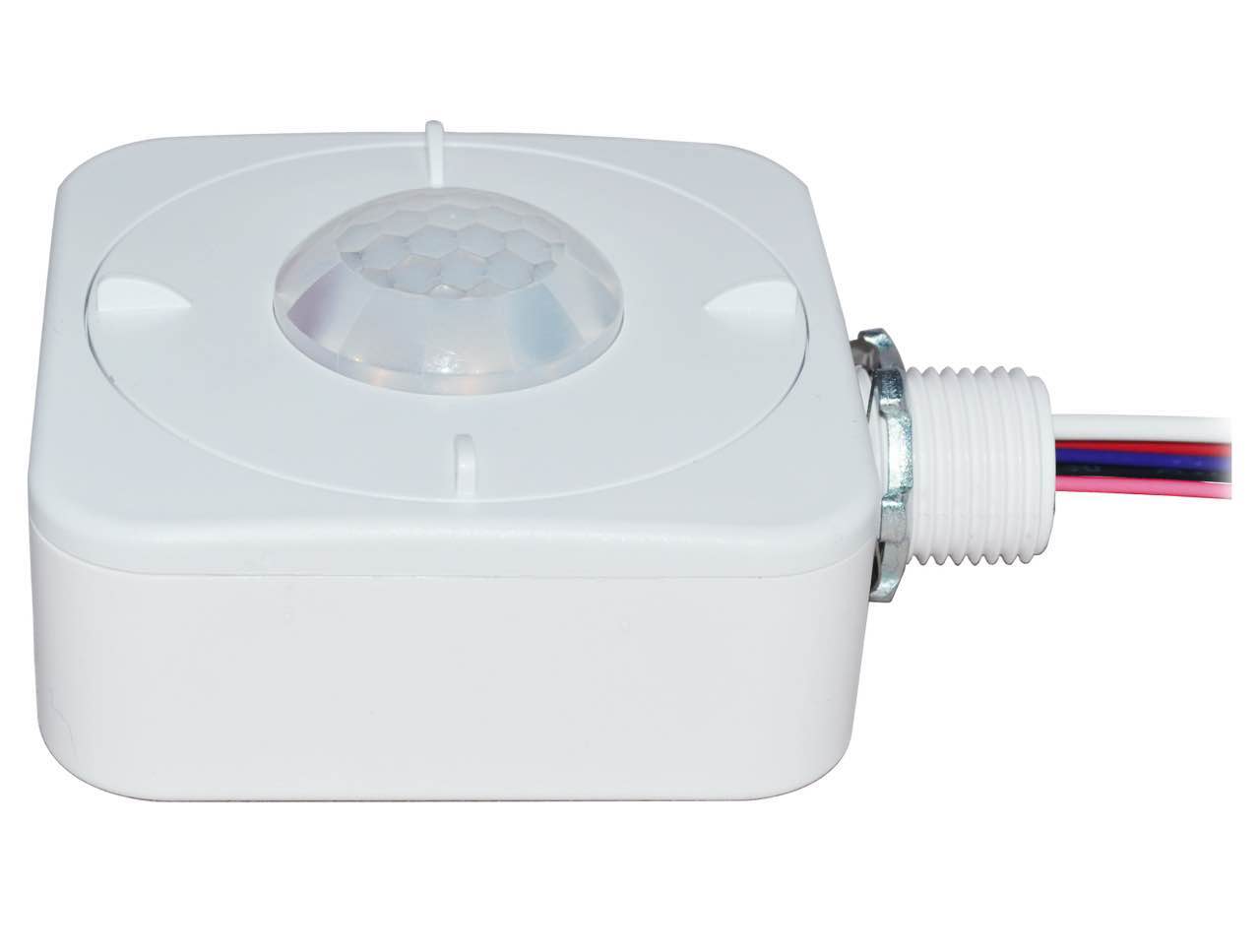

AC Powered BLE PIR Occ Control (Silvair) (06296)
he Silvair 06296 is an AC-powered lighting control featuring integrated PIR motion detection. It provides a 360° high-bay coverage pattern and supports mounting heights up to 40 feet.
The control operates from 120â277V and includes a built-in node with an integrated 0â10V output. Its single-channel configuration provides one dimmable output for compatible lighting systems.
Bluetooth Mesh connectivity supports wireless communication at distances up to 200 feet. Connected lighting can be operated through the Silvair Bluetooth app.
The integrated daylight-harvesting function provides automatic light adjustment. High-end trim, bi-level dimming, occupancy sensing, and scheduling are also shown as supported lighting-control functions.
High-Bay PIR Detection
Infrared motion detection with 360° coverage at mounting heights up to 40 feet.
200-Foot Communication Range
Bluetooth Mesh supports wireless communication at distances up to 200 feet.
Integrated 0â10V Control
Built-in node provides one dimmable 0â10V output.
Features & Benefits
- Bluetooth Mesh provides wireless lighting-control communication.
- PIR sensing detects motion through infrared.
- Daylight harvesting provides automatic light adjustment.
- A 360° coverage pattern supports high-bay applications.
- Supports mounting heights up to 40 feet.
- Wireless communication operates at distances up to 200 feet.
- Bluetooth app control is available through the Silvair platform.
- The built-in node provides an integrated 0â10V output.
- Single-channel operation provides one dimmable output.
- High-end trim, bi-level dimming, and scheduling are supported.
Construction
- Square fixture-mounted control design
- Integrated PIR motion sensor
- Integrated built-in control node
- G1/2 threaded fixture connection
Electrical
- Input Voltage: 120â277V
- Control Output: Integrated 0â10V output
- Channels: One dimmable output
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 200 ft
- Operating Temperature: â40°F to 167°F
- IP Rating: IP20
Optics
- PIR infrared motion detection
- Daylight harvesting with automatic light adjustment
- 360° high-bay coverage pattern
- Coverage scales extend approximately 30 ft from the sensor
Mounting
- Fixture-mounted design
- High-bay application
- Mounting Height: Up to 40 ft
- G1/2 threaded fixture connection
Controls
- Silvair Bluetooth app control
- Bluetooth Mesh wireless control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0â10V dimming
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
