AC Powered BLE Wireless Outdoor Long Range Extender (Silvair) (06308)
The Silvair 06308 is an AC-powered outdoor Bluetooth Mesh long-range extender. It extends lighting-control communication by receiving and retransmitting signals between neighboring devices, creating a scalable communication pathway across the connected network.
The extender operates from a standard 120â277VAC line-voltage input. Its specification lists a maximum communication distance of up to 800 feet in typical outdoor environments, although the actual range depends on field-installation conditions.
An onboard antenna supports wireless communication, while the built-in 20kV/10kA surge protector provides the surge-protection capacity stated in the specification. The enclosure is IP65 rated and supports operating temperatures from â22°F to 158°F.
The 06308 also includes a magnetic-reset function and operates through the Silvair Bluetooth Mesh platform. Its listed mounting height is up to 40 feet, and its operating life is specified as more than 70,000 hours.
Bluetooth Range Up to 800 Feet
Extends Bluetooth Mesh communication across outdoor lighting installations.
Built-In Surge Protector
Includes a surge protector rated at 20kV/10kA.
Outdoor IP65 Design
IP65-rated enclosure supports outdoor lighting-control applications.
Features & Benefits
- Bluetooth SIG Mesh supports wireless mesh-network communication.
- The extender retransmits received signals between neighboring devices.
- Maximum Bluetooth communication range is listed as up to 800 feet.
- Actual wireless range depends on field-installation conditions.
- Standard 120â277VAC input supports line-voltage operation.
- An onboard antenna supports wireless communication.
- Magnetic reset is available for device reset.
- A built-in 20kV/10kA surge protector is included.
- IP65 protection supports outdoor applications.
- The Silvair app supports operation within the Silvair Bluetooth Mesh platform.
Construction
- Enclosed outdoor long-range extender design
- Integrated onboard antenna
- Built-in 20kV/10kA surge protector
- IP65-rated enclosure
Electrical
- Input Voltage: 120â277VAC
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 800 ft
- Surge Protector: 20kV/10kA
- Operating Temperature: â22°F to 158°F
- IP Rating: IP65
- Life Span: More than 70,000 hours
Optics
Mounting
- Designed for outdoor lighting applications
- Mounting Height: Up to 40 ft
- Mounting tabs are shown on the enclosure

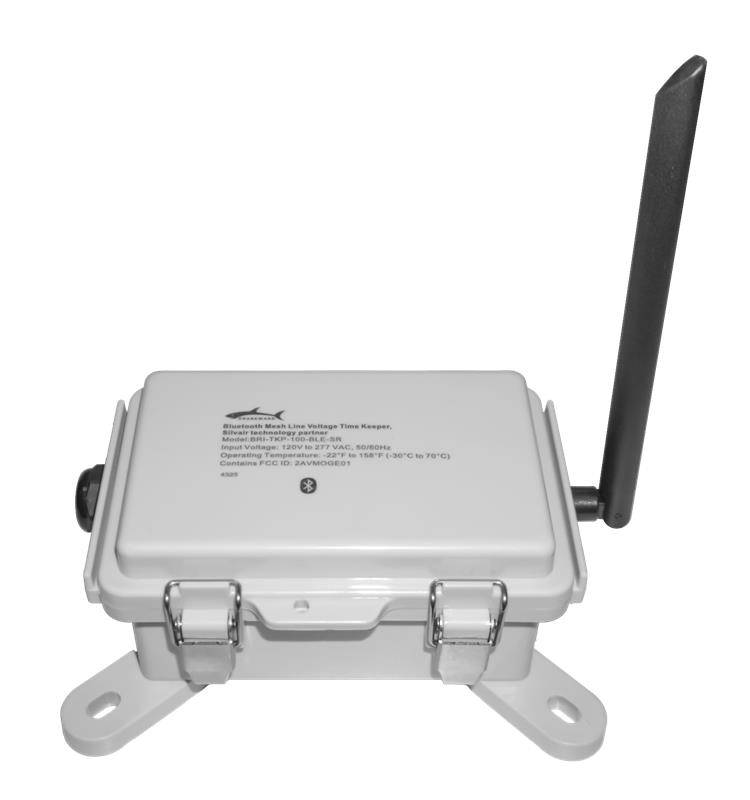

- Onboard antenna should remain visible as shown in the product image
Controls & Reset
- Bluetooth Mesh communication
- Signal retransmission between neighboring devices
- Silvair app-based network operation
- Magnetic reset
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
Listings & Certifications
