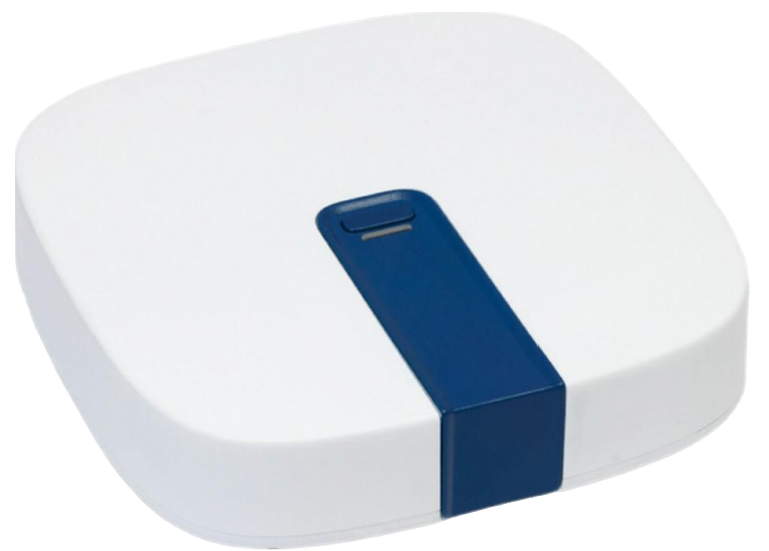

AC Powered Gateway (Silvair) (06298)



The Silvair Gateway connects Bluetooth Mesh networks commissioned with Silvair Commissioning tools to the Silvair cloud. This connection enables scheduled lighting events and supports cloud-based services using information generated by the connected lighting network.

Gateway scheduling is available by default and can schedule changes to scenes and lighting-control scenarios, including occupancy sensing and daylight harvesting. Additional paid services can provide energy and occupancy monitoring, remote device monitoring and control, and emergency-lighting test-result monitoring.

A single gateway can handle approximately 200 Bluetooth Mesh devices and process approximately 450 network messages per second. It supports Ethernet and Wi-Fi connectivity, while selected Cascade-500-W and Cascade-500-X versions also support 4G LTE Cat 1 with 2G/3G connectivity.

The gateway uses secure boot, an encrypted operating system, TLS communication with the Silvair cloud, and qualified Bluetooth Mesh communication with connected devices. It also supports automatic security updates, firmware updates, schedule caching, system diagnostics, and performance metrics through the Silvair web app.

Sale Off
AC Powered Gateway (Silvair) (06298)
AC Powered Gateway (Silvair) (06298)

Specs Sheet

IES Files & LM Reports

Instructions

How To Buy

Connects Mesh to Cloud


Connects commissioned Bluetooth Mesh lighting networks to the Silvair cloud.



Supports Approximately 200 Devices


A single gateway can handle approximately 200 Bluetooth Mesh devices.

Supports Approximately 200 Devices


Built-in node provides one dimmable 0–10V output.

Features & Benefits

  • Connects Silvair-commissioned Bluetooth Mesh lighting networks to the Silvair cloud.
  • Gateway scheduling can automate scenes, occupancy sensing, and daylight-harvesting scenarios.
  • Optional energy and occupancy monitoring provides data through the web app and cloud API.
  • Optional remote monitoring and control supports low-latency device-status access and control through APIs.
  • Emergency-lighting testing results can be collected and reviewed through an additional paid service.
  • System diagnostics support network-status monitoring and remote troubleshooting.
  • A single gateway can handle approximately 200 Bluetooth Mesh devices.
  • Hardware can process approximately 450 Bluetooth Mesh messages per second.
  • Secure provisioning, secure boot, encrypted storage, and TLS communication protect the system.
  • Automatic security, operating-system, and firmware updates support continued operation.

Construction

  • Compact gateway enclosure with a status LED
  • Wall- or surface-mounted design
  • One RJ45 10/100 Ethernet port
  • One USB 2.0 Type-A port

Electrical

  • Power Supply: 4.5–5.5V DC, 2A
  • Power over Ethernet: 36–57V DC, IEEE 802.3af
  • Processor: i.MX6ULL Y2, 32-bit ARM, 800MHz
  • Memory: 512MB DDR3L SDRAM
  • Storage: 8GB eMMC
  • Operating System: Ubuntu Core
  • Required Ambient Temperature: 32°F to 140°F / 0°C to 60°C

Communication

  • Primary Protocol: Bluetooth Mesh using 2.4GHz Bluetooth Low Energy
  • Wi-Fi: 802.11a/b/g/n/ac, 2.4GHz and 5GHz
  • Ethernet: RJ45 10/100
  • Cellular: 4G LTE Cat 1 with 2G/3G on Cascade-500-W and Cascade-500-X only
  • Message Processing: Approximately 450 Bluetooth Mesh messages per second
  • Message Transmission: Each message is sent three times with TTL 127
  • Device Capacity: Approximately 200 Bluetooth Mesh devices per gateway

Mounting

    • Wall or surface mounted
    • Install as close as possible to the geometrical center of the lighting network
    • Position within radio range of as many network nodes as possible
    • Keep as far as possible from sources of radio interference
    • The gateway must have a direct connection to at least one device in every area it serves
    • Areas assigned to the gateway must be able to communicate with one another

    • Controls, Connectivity & Management

    • Silvair web-app management
    • Gateway scheduling
    • Scene and lighting-control scenario scheduling
    • Energy and occupancy monitoring through an additional paid service
    • Remote monitoring and control through an additional paid service
    • Emergency-lighting test-result monitoring through an additional paid service
    • Network diagnostics and remote troubleshooting
    • Automatic connection to the Silvair cloud
    • Automatic firmware and security updates
    • Gateway and network performance metrics
    • Schedule caching
    • Status LED reporting

    Supported Network Configurations

    • Cable Ethernet using DHCP
    • Cable Ethernet using a static IP address
    • Wi-Fi WPA2-PSK using DHCP
    • Wi-Fi WPA2-PSK using a static IP address
    • 4G LTE Cat 1 with 2G/3G for Cascade-500-W and Cascade-500-X
    When multiple connection methods are available, the gateway prioritizes:
    1. Ethernet
    2. Wi-Fi
    3. Cellular

    Status LED Operation

    • Solid Yellow: Gateway is booting
    • One Yellow Flash Every Two Seconds: Connecting to the management portal
    • Two Yellow Flashes Per Second: Authenticating with the management portal
    • Solid Green: Connected and authenticated
    • Rapid Yellow Flashing: Connection to the management portal has been lost
    The first startup can take up to five minutes.
