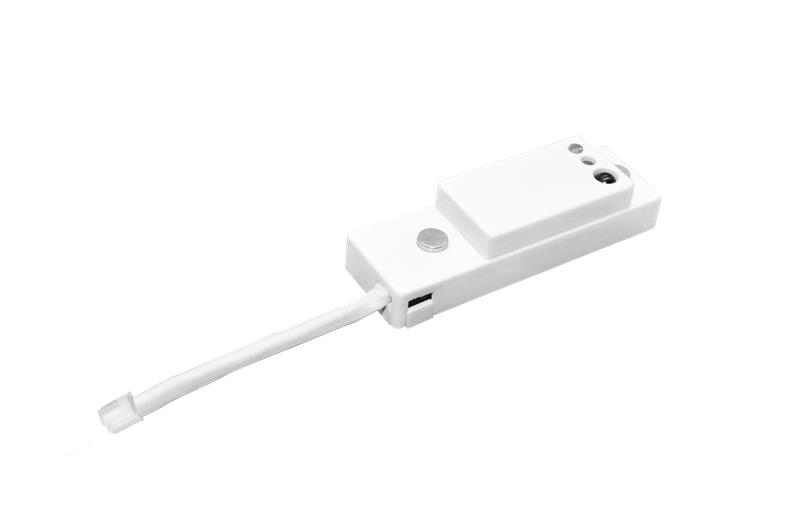

DC Powered BLE OcuSense Occ Control (Silvair) (06291)
The Silvair 06291 is a DC-powered OcuSense lighting control with integrated PIR motion detection. It provides a 360° coverage pattern and supports installation heights from 8 to 12 feet.
The control operates from 10–14V and includes a built-in node with an integrated 0–10V output. Its single-channel configuration provides one dimmable output for compatible lighting.
Bluetooth Mesh provides wireless communication at distances up to 100 feet. Connected lighting can be operated through the Silvair Bluetooth app.
The integrated daylight-harvesting function automatically adjusts lighting according to ambient light levels. High-end trim, bi-level dimming, occupancy sensing, and scheduling are also shown as supported control functions.
OcuSense PIR Detection
Integrated PIR motion sensing with a 360° coverage pattern.
Daylight Harvesting
Automatically adjusts connected lighting according to ambient light levels.
Integrated 0–10V Control
Built-in node provides one dimmable 0–10V output.
Features & Benefits
- Bluetooth Mesh provides wireless lighting-control communication.
- PIR sensing detects motion through infrared.
- Daylight harvesting provides automatic light adjustment.
- A 360° coverage pattern supports detection around the sensor.
- Supports installation heights from 8 to 12 feet.
- Wireless communication operates at distances up to 100 feet.
- Bluetooth app control is available through the Silvair platform.
- The built-in node provides an integrated 0–10V output.
- Single-channel operation provides one dimmable output.
Construction
- Compact rectangular OcuSense control design
- Integrated PIR motion sensor
- Integrated built-in control node
- IP20-rated design
Electrical
- Input Voltage: 10–14V
- Control Output: Integrated 0–10V output
- Channels: One dimmable output
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Operating Temperature: −40°F to 158°F
- IP Rating: IP20
Optics
- PIR infrared motion detection
- Daylight harvesting with automatic light adjustment
- 360° coverage pattern
- Installation height range shown as 8–12 ft
- Detection-range diagram shown for an 8 ft installation height
- Maximum detection range shown as 17 ft
Mounting
- Designed for installations from 8–12 ft
- Maximum Mounting Height: Up to 12 ft
Controls
- Silvair Bluetooth app control
- Bluetooth Mesh wireless control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0–10V dimming
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
Listings & Certifications
