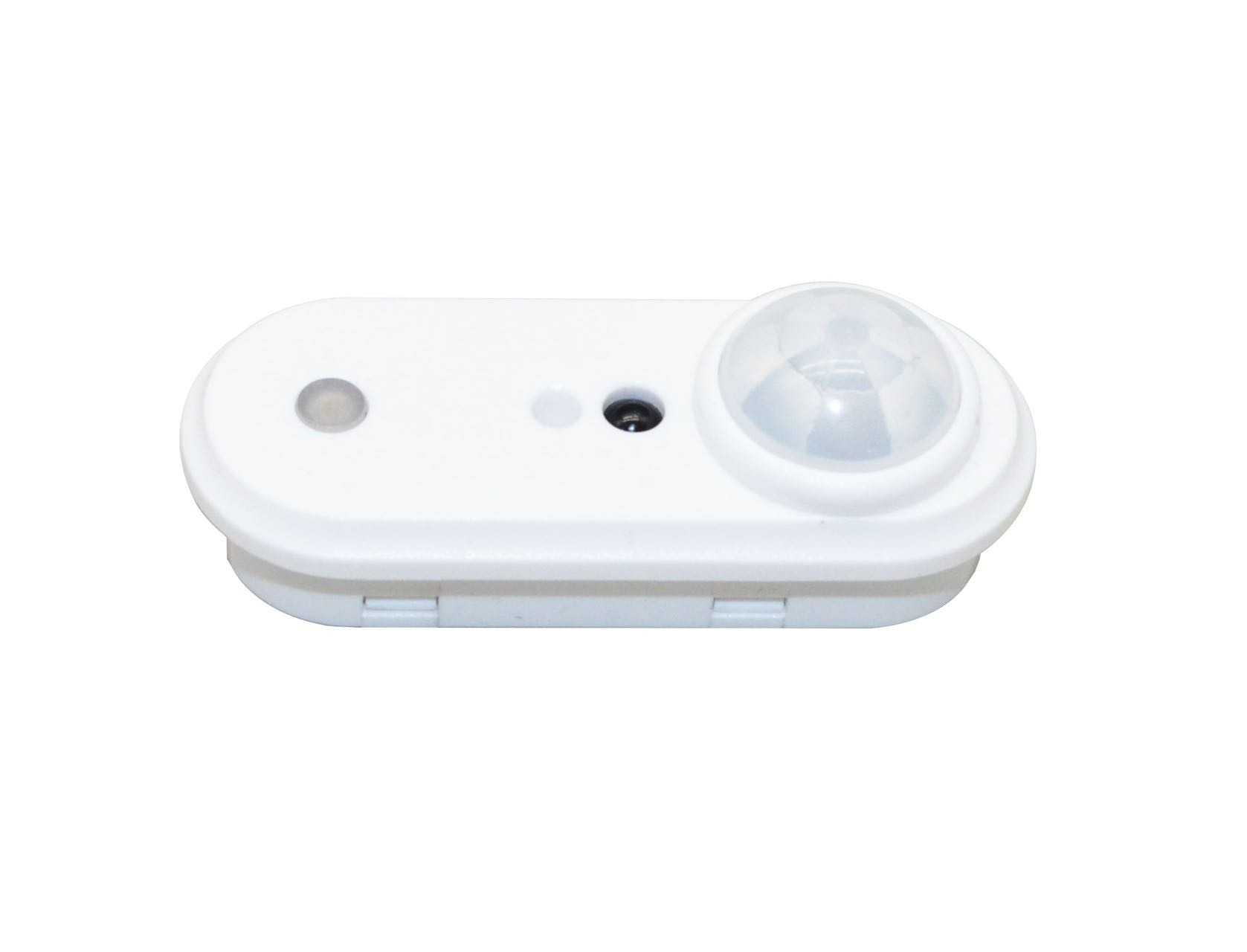

DC Powered BLE PIR Occ Control (Silvair) (06293)
The Silvair 06293 is a DC-powered lighting control with an integrated PIR sensor. It detects motion through infrared and provides a 360° coverage pattern for installations at mounting heights up to 13 feet.
The controller operates from 10â14V and includes a built-in node with an integrated 0â10V dimmable output. Its single-channel configuration provides one dimmable lighting-control channel.
Bluetooth Mesh provides wireless communication at distances up to 100 feet. Connected lighting can be operated through the Silvair app.
The integrated daylight-harvesting function adjusts light according to ambient levels. High-end trim, bi-level dimming, occupancy sensing, and scheduling are also shown as supported control functions.
PIR Motion Detection
Infrared motion detection with a 360° coverage pattern.
Daylight Harvesting
Adjusts connected lighting according to ambient light levels.
Integrated 0â10V Control
Built-in node provides one dimmable 0â10V output.
Features & Benefits
- Bluetooth Mesh provides wireless lighting-control communication.
- PIR sensing detects motion through infrared.
- Daylight harvesting adjusts lighting according to ambient levels.
- A 360° coverage pattern supports detection around the sensor.
- Supports mounting heights up to 13 feet.
- Wireless communication operates at distances up to 100 feet.
- App-based lighting operation is available through the Silvair platform.
- The built-in node provides an integrated 0â10V dimmable output.
- Single-channel operation provides one dimmable control channel.
Construction
- Compact rectangular PIR control design
- Integrated PIR motion sensor
- Integrated built-in control node
- PH2.0-4P connector
Electrical
- Input Voltage: 10â14V
- Control Output: Integrated 0â10V dimmable output
- Channels: One dimmable channel
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Operating Temperature: â4°F to 140°F
- IP Rating: IP20
Optics
- PIR motion detection through infrared
- Daylight harvesting that adjusts light to ambient levels
- 360° coverage pattern
Mounting
- Designed for installations up to 13 ft
- Maximum Mounting Height: Up to 13 ft
- PH2.0-4P connection
Controls
- Silvair app-based operation
- Bluetooth Mesh wireless control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0â10V dimming
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
