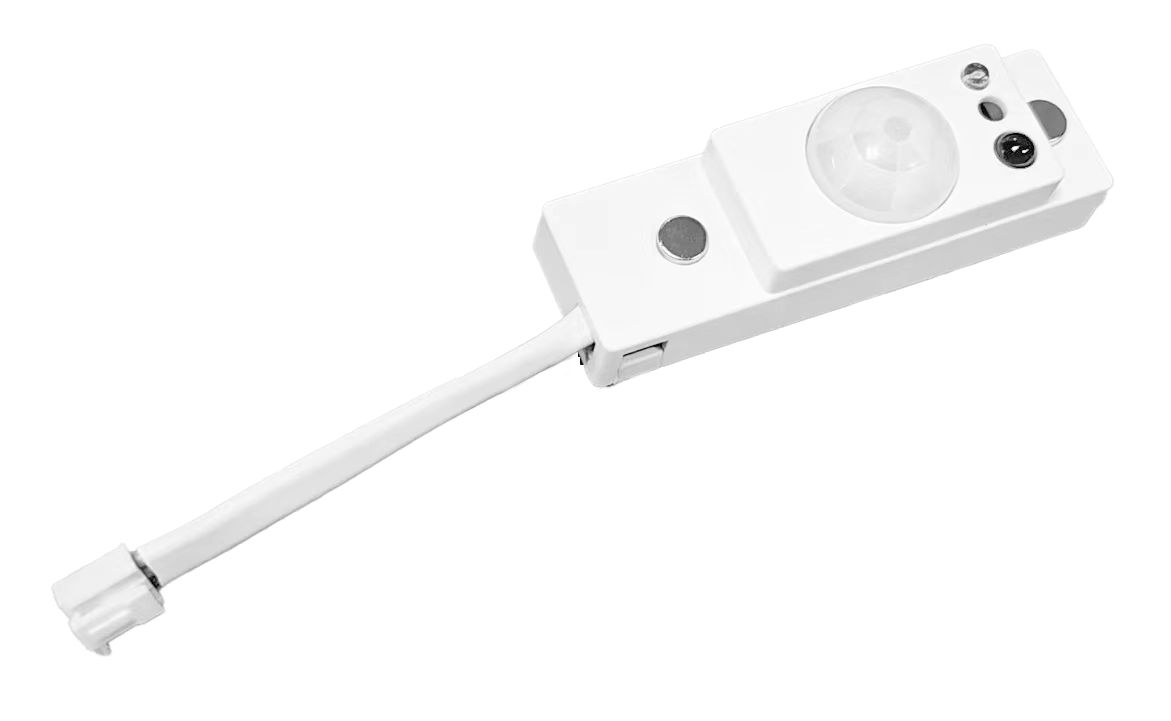

DC Powered BLE PIR Occ Control (Silvair) (06294)
he Silvair 06294 is a DC-powered lighting control with an integrated PIR motion sensor. It detects motion through infrared and provides a 360° coverage pattern for installations at mounting heights up to 12 feet.
The controller operates from 10–14V and includes a built-in node with an integrated 0–10V output. Its single-channel configuration provides one dimmable output for compatible lighting.
Bluetooth Mesh supports wireless communication at distances up to 100 feet. Connected lighting can be operated remotely through the Silvair Bluetooth app.
The integrated daylight-harvesting function provides automatic light adjustment. High-end trim, bi-level dimming, occupancy sensing, and scheduling are also shown as supported lighting-control functions.
PIR Motion Detection
Infrared motion detection with a 360° coverage pattern.
Daylight Harvesting
Provides automatic light adjustment based on ambient conditions.
Integrated 0–10V Control
Built-in node provides one dimmable 0–10V output.
Features & Benefits
- Bluetooth Mesh provides wireless lighting-control communication.
- PIR sensing detects motion through infrared.
- Daylight harvesting provides automatic light adjustment.
- A 360° coverage pattern supports detection around the sensor.
- Supports mounting heights up to 12 feet.
- Wireless communication operates at distances up to 100 feet.
- Bluetooth app control is available through the Silvair platform.
- The built-in node provides an integrated 0–10V output.
- Single-channel operation provides one dimmable output.
- High-end trim, bi-level dimming, and scheduling are supported.
Construction
- Compact rectangular PIR control design
- Integrated PIR motion sensor
- Integrated built-in control node
- IP20-rated design
Electrical
- Input Voltage: 10–14V
- Control Output: Integrated 0–10V output
- Channels: One dimmable output
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Operating Temperature: −4°F to 104°F
- IP Rating: IP20
Optics
- PIR infrared motion detection
- Daylight harvesting with automatic light adjustment
- 360° coverage pattern
- Coverage diagram shown for installation heights from 8–12 ft
- Detection-range diagram shown at an 8 ft installation height
- Maximum detection range: 17 ft
Mounting
- Designed for installation heights from 8–12 ft
- Maximum Mounting Height: Up to 12 ft
Controls
- Silvair Bluetooth app control
- Bluetooth Mesh wireless control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0–10V dimming
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
