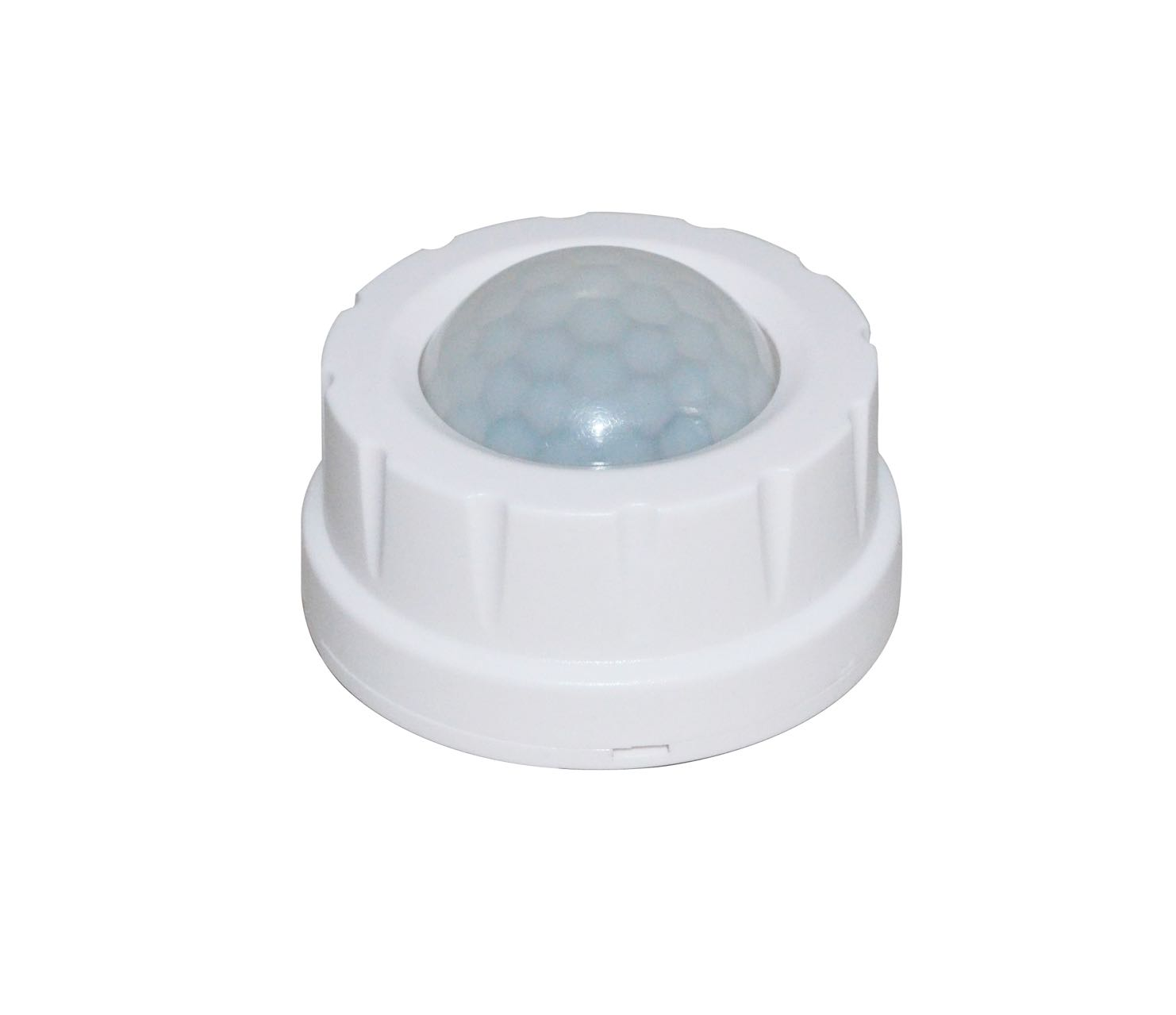

DC Powered BLE PIR Occ Control (Silvair) (06292)
The Silvair 06292 is a DC-powered PIR lighting control designed for high-bay applications. Its integrated PIR sensor detects motion through infrared and provides a 360° detection pattern at mounting heights up to 40 feet.
The control operates from 12â24V and includes a built-in node with an integrated 0â10V driver. Its single-channel configuration provides one dimmable output for compatible lighting.
Bluetooth Mesh provides a wireless dimmable network with communication distances up to 200 feet. App-based operation is available through the Silvair platform.
The 06292 also supports daylight harvesting for automatic brightness control, high-end trim, bi-level dimming, occupancy sensing, and scheduling. It is IP65 rated and has a listed lifespan of more than 70,000 hour
High-Bay PIR Detection
Infrared motion detection with 360° coverage at mounting heights up to 40 feet.
200-Foot Communication Range
Bluetooth Mesh supports wireless communication at distances up to 200 feet.
Integrated 0â10V Control
Built-in node provides one dimmable 0â10V output.
Features & Benefits
- Bluetooth Mesh provides a wireless dimmable lighting-control network.
- PIR sensing detects motion through infrared.
- Daylight harvesting provides automatic brightness control.
- A 360° detection pattern supports high-bay applications.
- The control supports mounting heights up to 40 feet.
- Wireless communication operates at distances up to 200 feet.
- App-based lighting operation is available through the Silvair platform.
- The built-in node includes an integrated 0â10V driver.
- Single-channel operation provides one dimmable output.
Construction
- Round PIR lighting-control design
- Integrated PIR motion sensor
- Integrated built-in node and 0â10V driver
- IP65-rated design
Electrical
- Input Voltage: 12â24V
- Control Output: Integrated 0â10V driver
- Channels: One dimmable output
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 200 ft
- Operating Temperature: â4°F to 140°F
- IP Rating: IP65
Optics
- PIR infrared motion sensing
- Daylight harvesting with automatic brightness control
- 360° detection pattern
- High-bay detection for mounting heights up to 40 ft
Mounting
- High-bay application
- Mounting Height: Up to 40 ft
- Threaded mounting connection
Controls
- Silvair app-based operation
- Bluetooth Mesh wireless control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0â10V dimming
Operations
- More than 70,000 hours
Warranty
- 5-Year Product Warranty
Listings & Certifications
