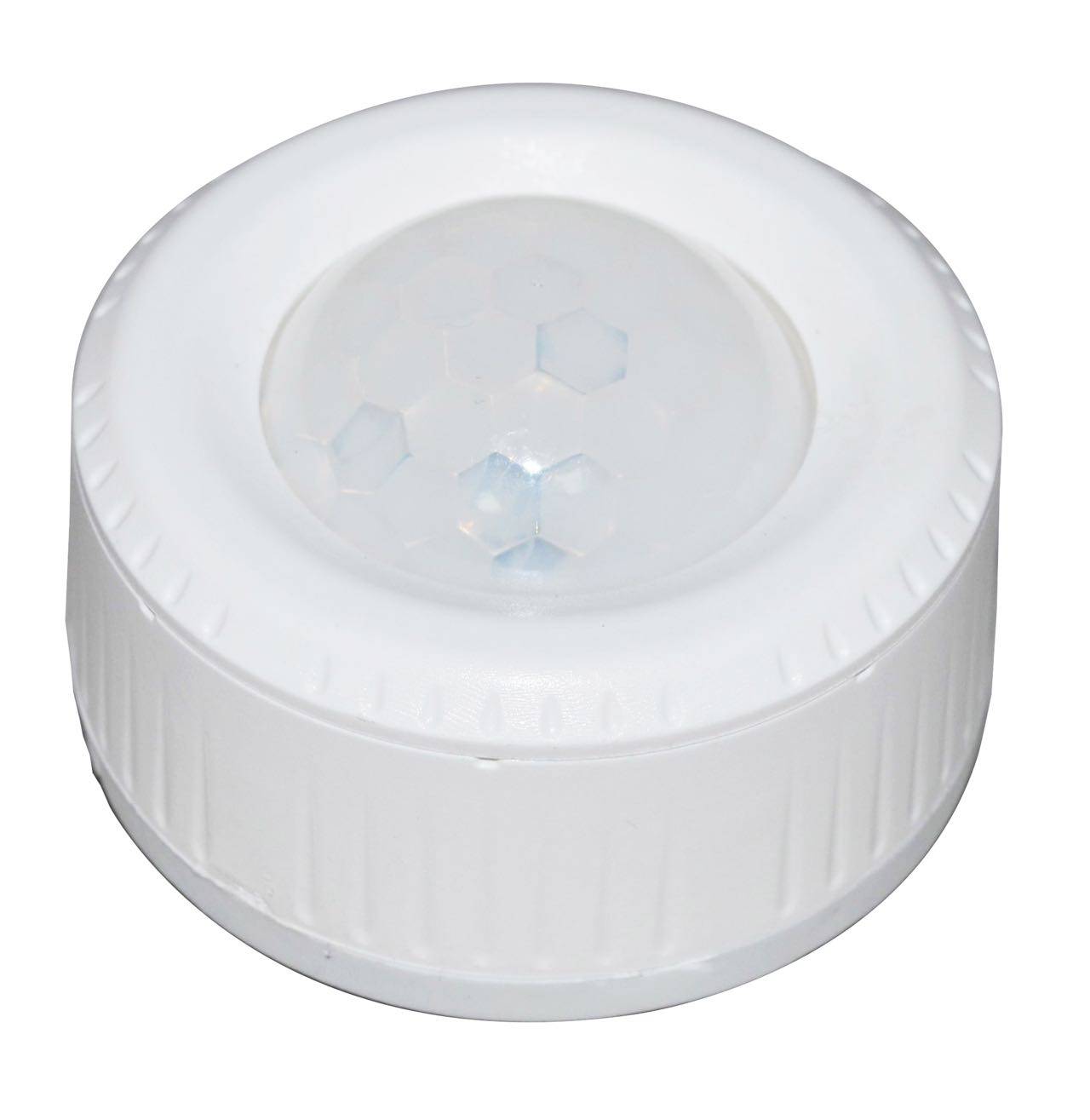

DC Powered BLE PIR Occ Control (Silvair) (06290)



The Silvair 06290 Series consists of DC-powered PIR lighting controls designed for indoor and outdoor applications. Both models detect motion through infrared and provide a 360° coverage pattern at mounting heights up to 40 feet.

Each control operates from 12–24V and includes a built-in node with an integrated 0–10V output. The single-channel design provides one dimmable output for compatible lighting systems.

Bluetooth Mesh connectivity supports wireless communication at distances up to 200 feet. App-based Bluetooth control is available through the Silvair platform, while high-end trim, bi-level dimming, and scheduling are shown as supported functions.

Model 06290 01 is an indoor control that uses daylight harvesting for automatic light adjustment. Model 06290 04 is an outdoor control that uses photocell functionality for automatic light adjustment. Both models are IP65 rated and have a listed lifespan of more than 70,000 hours.

Sale Off
DC Powered BLE PIR Occ Control (Silvair) (06290)
DC Powered BLE PIR Occ Control (Silvair) (06290)

Specs Sheet

IES Files & LM Reports

Instructions

How To Buy

High-Mount PIR Detection


Infrared motion detection with 360° coverage at mounting heights up to 40 feet.



200-Foot Communication Range

Bluetooth Mesh supports wireless communication at distances up to 200 feet.

Indoor or Outdoor Control


Choose indoor daylight harvesting or outdoor photocell-based light adjustment.

Features & Benefits

  • Bluetooth Mesh provides wireless lighting-control communication.
  • PIR sensing detects motion through infrared.
  • A 360° coverage pattern supports detection around the control.
  • Both models support mounting heights up to 40 feet.
  • Wireless communication operates at distances up to 200 feet.
  • The built-in node provides an integrated 0–10V output.
  • Single-channel operation provides one dimmable output.
  • App-based Bluetooth control is available through the Silvair platform.
  • Model 06290 01 provides daylight harvesting for automatic light adjustment.
  • Model 06290 04 provides photocell control for automatic light adjustment.

Construction

  • Compact round PIR control design
  • Integrated PIR motion sensor
  • Integrated built-in control node
  • IP65-rated design

Electrical

  • Input Voltage: 12–24V
  • Control Output: Integrated 0–10V output
  • Channels: One dimmable output
  • Communication Protocol: Bluetooth Mesh
  • Maximum Communication Distance: 200 ft
  • Operating Temperature: −4°F to 140°F
  • IP Rating: IP65

Optics

  • PIR motion detection through infrared
  • 360° coverage pattern
  • Mounting height up to 40 ft
  • Model 06290 01
  • Daylight harvesting
  • Automatic light adjustment
  • Indoor application
  • Model 06290 04
  • Photocell
  • Automatic light adjustment
  • Outdoor fixture application

Mounting

    • Designed for installations up to 40 ft
    • 06290 01: Indoor application
    • 06290 04: Outdoor fixture application

    • Controls

    • Silvair app-based Bluetooth control
    • Bluetooth Mesh wireless control
    • PIR occupancy sensing
    • High-end trim
    • Bi-level dimming
    • Scheduling
    • Single-channel 0–10V dimming
    • Daylight harvesting on 06290 01
    • Photocell control on 06290 04

    Operations

    • More than 70,000 hours

    Warranty

    • 5-Year Product Warranty

    Listings & Certifications
