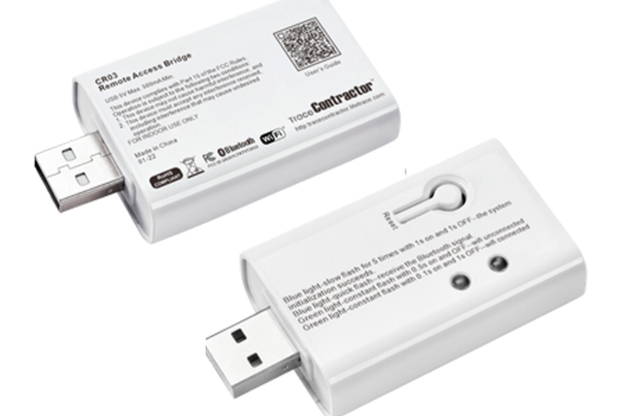

Remote Access Bridge Gateway (SkyFi Blu) (CR03)
The SkyFi Blu CR03 is a Bluetooth-to-Wi-Fi bridge designed to provide secure, 24/7 access to the MES lighting system from anywhere in the world. It enables authorized users to remotely manage the system and view the current status of connected devices.
The bridge supports the capture of energy-monitoring data and remote firmware updates. It connects the lighting system to the TraceContractor, TraceFactory, and Airux9 cloud-service platforms for monitoring and management through a web browser.
The CR03 is powered through USB-A and uses Bluetooth 5.0 for communication with the SkyFi Blu network. The specification lists a maximum Bluetooth transmission distance of 100 feet and a radio frequency of 2.4GHz ±75Hz.
Setup is completed by selecting the required Wi-Fi network and entering its password. The CR03 also automatically synchronizes the network time of MES SkyFi Blu Pro devices with internet time.
Secure Remote Access
Provides secure, 24/7 access to the MES lighting system from anywhere in the world.
Bluetooth-to-Wi-Fi Bridge
Connects Bluetooth 5.0 lighting devices to Wi-Fi for remote system management.
Remote Monitoring
Supports device-status visibility, energy-data capture, firmware updates, and network-time synchronization.
Features & Benefits
- Bluetooth-to-Wi-Fi bridge provides secure remote access to the MES lighting system.
- Supports 24/7 system access from anywhere in the world.
- Provides visibility into the current status of connected devices.
- Captures energy-monitoring data from the lighting system.
- Supports remote firmware updates.
- USB-A power simplifies connection to a compatible USB power source.
- Bluetooth 5.0 supports communication at distances up to 100 feet.
- TraceContractor, TraceFactory, and Airux9 cloud services support browser-based project management.
- Wi-Fi setup requires selecting the network and entering its password.
- Automatically synchronizes SkyFi Blu Pro device-network time with internet time.
Construction
- Compact USB-A plug-in bridge design
- Housing Material: UL 94-V0
- Integrated Bluetooth 5.0-to-Wi-Fi bridge
- IP20-rated design
Electrical
- Input Voltage: DLC 12V
- Input Current: 25mA maximum
- Radio Frequency: 2.4GHz ±75Hz
- Bluetooth Transmit: 80 ft maximum
- Bluetooth Version: 4.2
- Operating Temperature: â22°F to 131°F (â30°C to 55°C)
- IP Rating: IP20
Optics
Mounting
Controls
- Secure remote system access
- Remote lighting-system management
- Connected-device status visibility
- Energy-monitoring data capture
- Remote firmware updates
- Browser-based management through supported cloud platforms
- Wi-Fi network selection and password setup
- Automatic synchronization with internet time
Operations
Warranty
- 5-Year Product Warranty
Listings & Certifications
