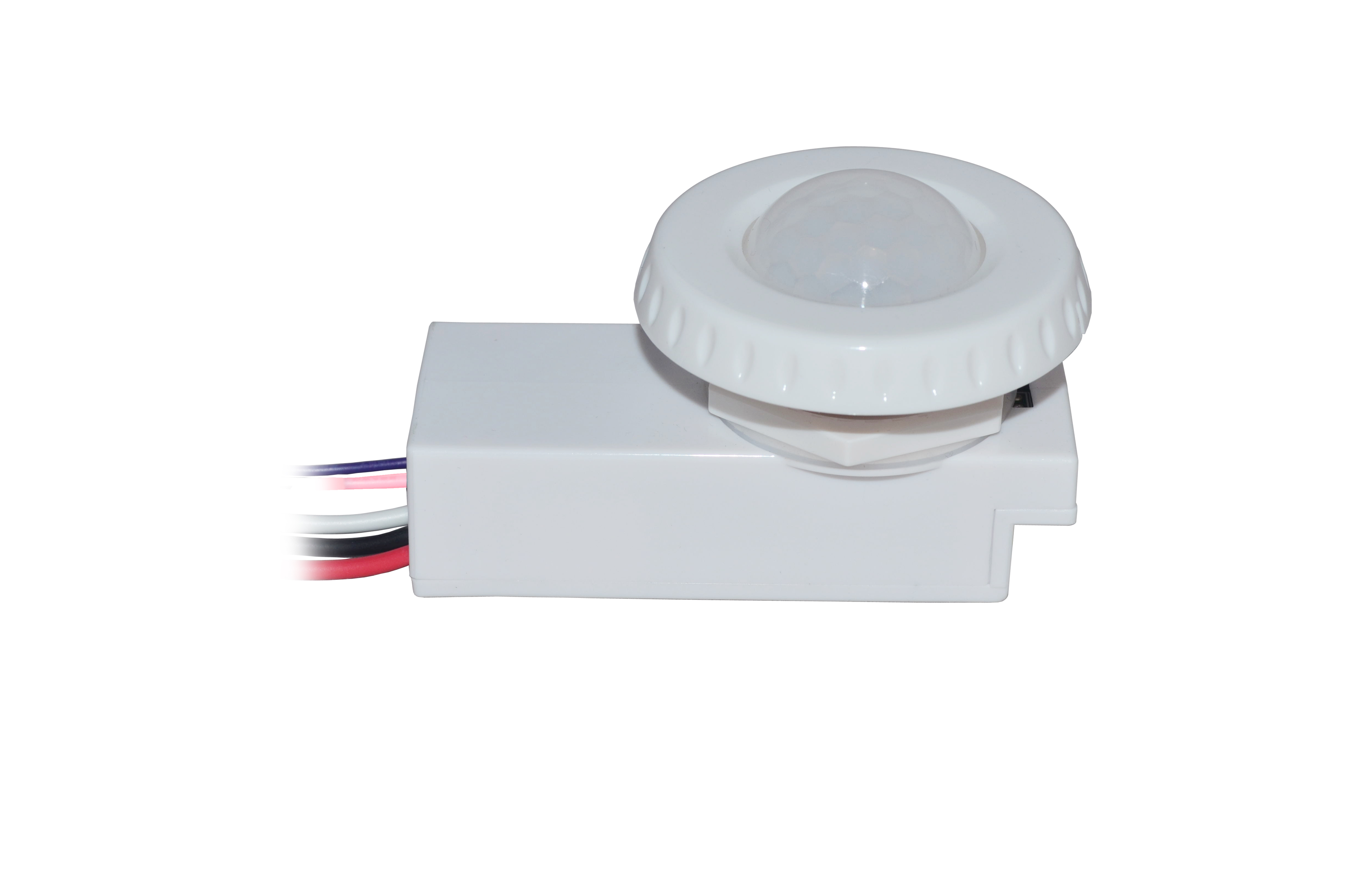

AC Powered BLE Controls PIR (Amaya Pro) (06931)
The Amaya Pro 06931 is an AC-powered, fixture-mounted lighting control equipped with PIR motion detection. It provides wide detection coverage with a 360° coverage pattern and is suitable for high-bay applications with mounting heights up to 40 feet.
The controller operates from 120â277V and includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06931 supports a five-second magnetic reset and remote reset through RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support additional programming, location control, and energy-data access.
Fixture-Mounted PIR Control
PIR motion detection with wide 360° coverage.
Mounting Up to 40 Feet
Designed for fixture-mounted high-bay applications.
IP65 Bluetooth Mesh Control
IP65-rated sensor with wireless communication up to 150 feet.
Features & Benefits
- PIR motion detection provides occupancy-based lighting control.
- Wide 360° detection coverage supports fixture-mounted applications.
- Suitable for high-bay applications with mounting heights up to 40 feet.
- Bluetooth Mesh communication provides a range of up to 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling enables precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Five-second magnetic reset and remote RESET + ON/OFF are supported.
- Commissioning remote, handheld remote, and online portal support programming and control.
Construction
- Compact fixture-mounted sensor design
- Integrated PIR motion sensor
- IP65-rated design
- G1 threaded mounting connection
Electrical
- Input Voltage: 120â277V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: â40°F to 158°F
- IP Rating: IP65
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
- L3 high-bay and L4 low-bay lens options
Mounting
- Fixture-mounted design
- High-bay application ready
- Mounting Height: Up to 40 ft
- G1 threaded mounting connection
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second magnetic reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
