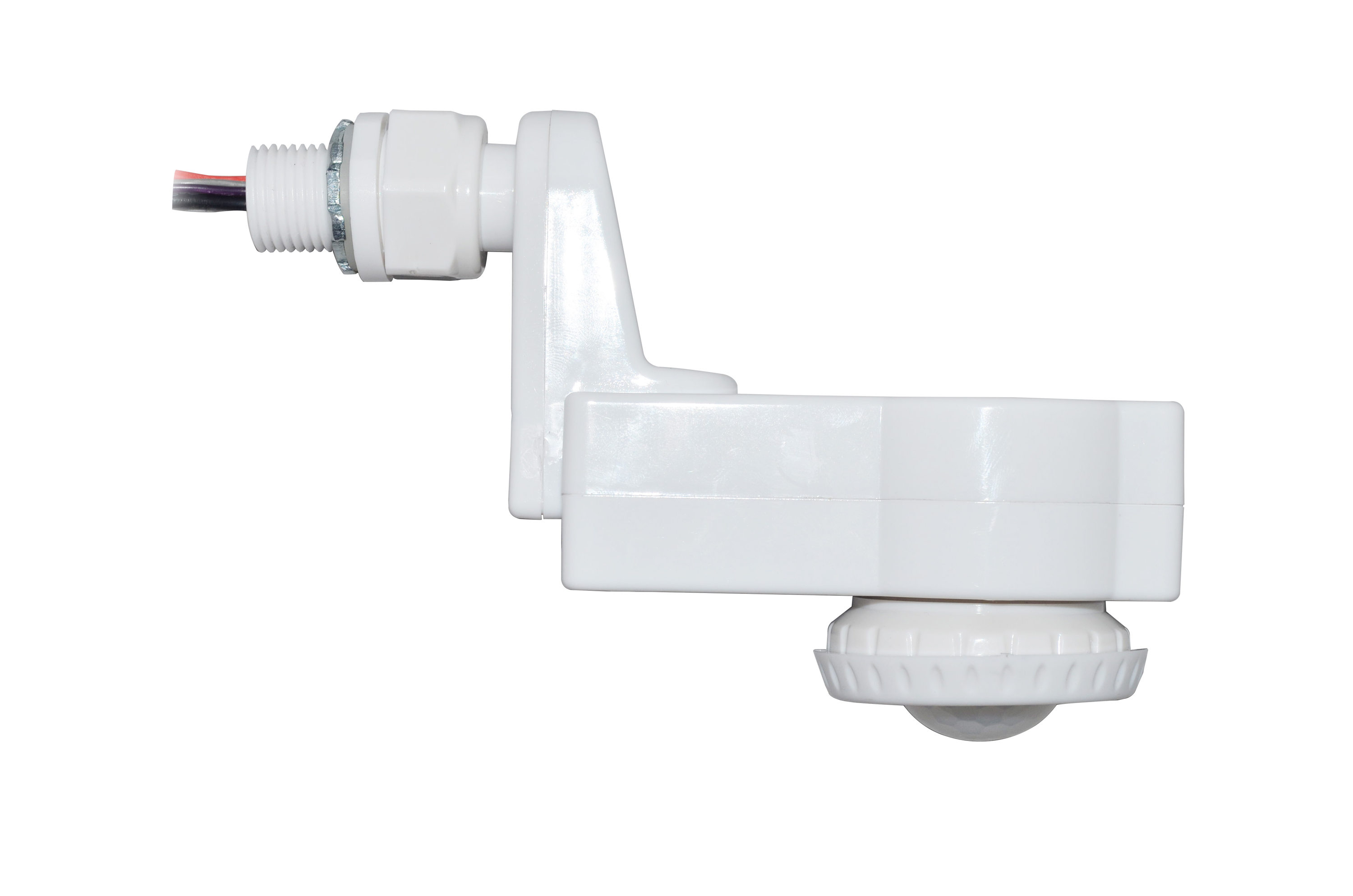

AC Powered BLE Controls PIR (Amaya Pro) (06933)
The Amaya Pro 06933 is an AC-powered, fixture-mounted lighting control featuring PIR motion detection. It provides wide detection coverage with a 360° coverage pattern and is designed for high-bay applications with mounting heights up to 40 feet.
The controller operates from 120â277V and includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides communication distances up to 328 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06933 supports a five-second magnetic reset and remote reset through RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support programming, location control, and access to energy data.
Extended Communication Range
Bluetooth Mesh communication distances up to 328 feet.
High-Bay PIR Detection
Wide 360° PIR detection coverage with mounting heights up to 40 feet.
IP65 Fixture-Mounted Control
IP65-rated fixture-mounted sensor operating from 120â277V.
Features & Benefits
- PIR motion detection provides wide detection coverage.
- 360° coverage pattern supports high-bay lighting applications.
- Suitable for mounting heights up to 40 feet.
- Bluetooth Mesh communication provides a range of up to 328 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling provides precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Automatic health-status updates are continuously reported to the server.
- Magnetic reset, remote reset, commissioning remote, handheld remote, and online portal provide multiple control options.
Construction
- Fixture-mounted sensor design
- IP65-rated design
- Integrated PIR motion sensor
- G1/2 threaded mounting connection
Electrical
- Input Voltage: 120â277V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 328 ft
- Operating Temperature: â40°F to 158°F
- IP Rating: IP65
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
- L3 high-bay and L4 low-bay lens options
Mounting
- Fixture-mounted design
- High-bay application ready
- Mounting Height: Up to 40 ft
- G1/2 threaded mounting connection
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second magnetic reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote and online portal control
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
