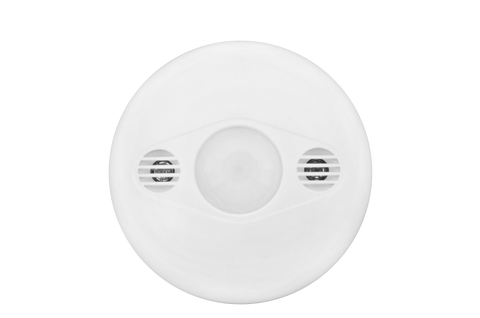

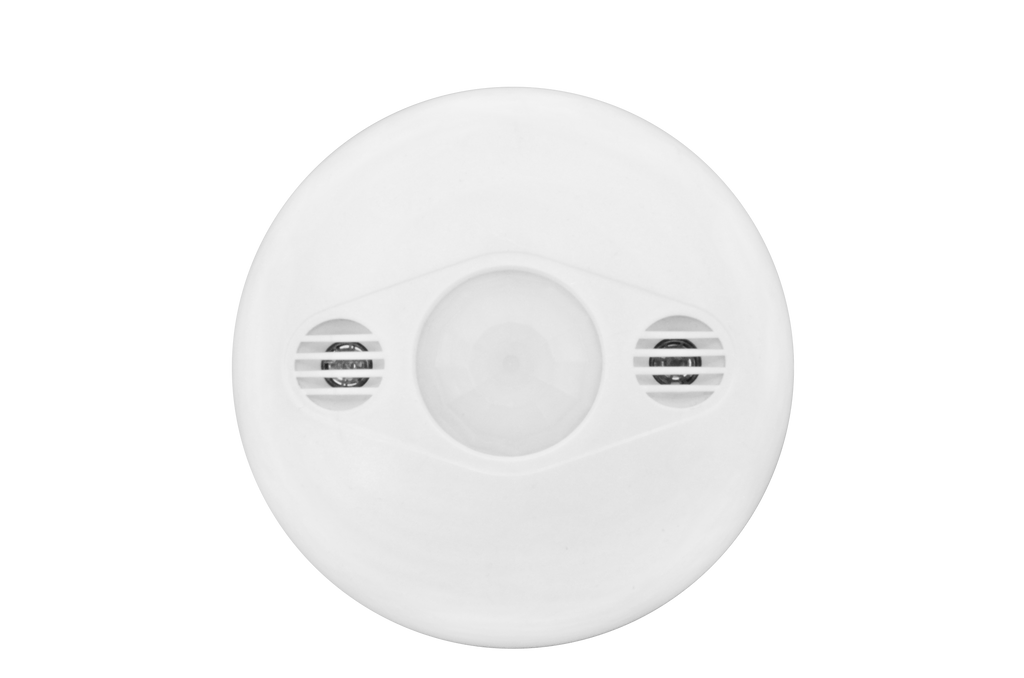

AC Powered BLE Controls PIR/ Ultrasonic (Amaya Pro) (06937)
The Amaya Pro 06937 is an AC-powered, ceiling-mounted lighting control featuring dual PIR and ultrasonic motion detection. It provides wide detection coverage with a 360° coverage pattern for office and low-bay applications.
The sensor supports mounting heights up to 13 feet and uses an ultrasonic frequency of 40kHz. The specification’s coverage diagram identifies separate PIR and ultrasonic coverage areas.
The controller includes a built-in 20mA, 0–10V analog signal output. Luminaires connected to the 0–10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides communication distances up to 150 feet. The product also supports personalized remote control, automatic health-status reporting, a five-second button reset, remote reset, commissioning-remote programming, handheld-remote control, and an online management portal.
Dual-Technology Detection
Combines PIR and 40kHz ultrasonic motion detection.
Ceiling-Mounted Control
Designed for office and low-bay mounting heights up to 13 feet.
Bluetooth Mesh Connectivity
Provides wireless communication at distances up to 150 feet.
Features & Benefits
- Dual PIR and ultrasonic technology provides motion detection.
- Ultrasonic sensing operates at a frequency of 40kHz.
- Wide 360° detection coverage supports office and low-bay applications.
- Suitable for ceiling mounting at heights up to 13 feet.
- Bluetooth Mesh communication provides a range of up to 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Personalized remote control supports user-specific lighting preferences.
- Automatic device-health updates are continuously reported to the server.
- Built-in 20mA, 0–10V output supports mobile-app control of connected luminaires.
- Button reset, remote reset, commissioning remote, handheld remote, and online portal provide programming and control options.

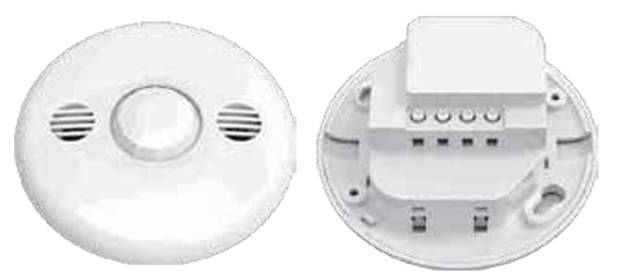

Construction
- Round ceiling-mounted sensor design
- Integrated PIR and ultrasonic motion detection
- Integrated Bluetooth Mesh connectivity
- IP20-rated design
Electrical
- Input Voltage: 120–347V
- Dimming Output: 20mA, 0–10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: 32°F to 131°F
- IP Rating: IP20
Optics
- Dual PIR and ultrasonic motion detection
- Ultrasonic Frequency: 40kHz
- Wide detection coverage
- 360° coverage pattern
Mounting
- Ceiling-mounted design
- Office and low-bay application ready
- Mounting Height: Up to 13 ft
Controls
- Scheduling
- Personalized remote control
- Mobile-app control of luminaires connected to the 0–10V control line
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
