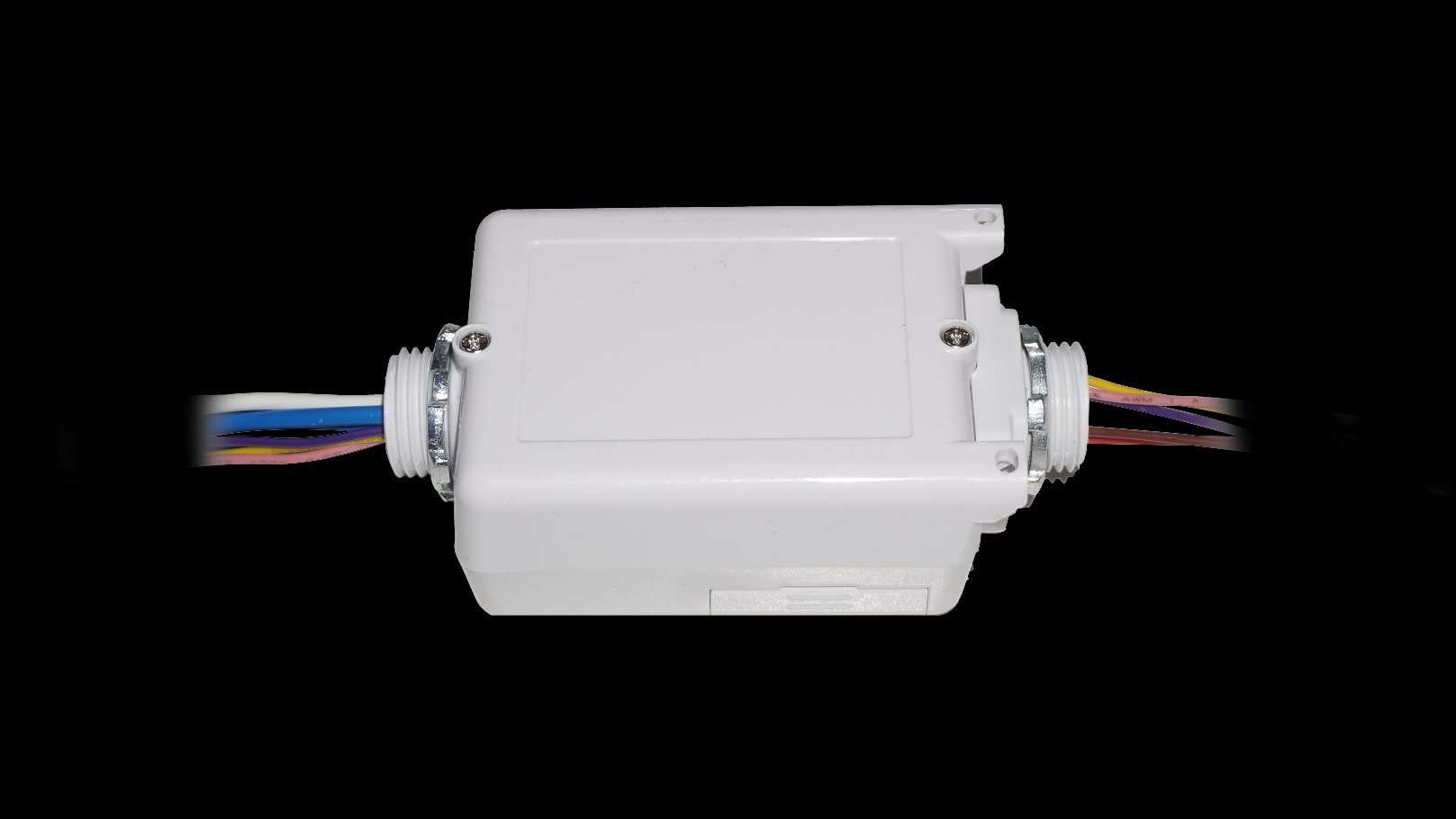

AC Powered BLE Power Pack Node (Amaya Pro) (06934)
The Amaya Pro 06934 is an AC-powered Bluetooth Mesh power pack node designed for integration with connected lighting controls. The specification identifies it as suitable for high-bay applications and provides a maximum wireless communication distance of 150 feet.
The node operates from a 120–347V input and includes a built-in 20mA, 0–10V signal output with a 20A relay. Luminaires connected to the 0–10V control line can be broadcast-controlled through the Amaya Pro mobile application.
The 06934 supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server. It also supports kinetic energy switches and includes an IPEX antenna.
Programming is available through a commissioning remote, while a handheld remote supports on-demand user preferences. The unit also provides a five-second button reset, remote reset through RESET + ON/OFF, and online portal access for planning, programming, location control, and energy data.
120–347V Power Pack Node
AC-powered node with a wide 120–347V input-voltage range.
0–10V Output and 20A Relay
Built-in 20mA, 0–10V signal output with an integrated 20A relay.
Kinetic Switch Support
Supports kinetic energy switches and Bluetooth Mesh communication up to 150 feet.
Features & Benefits
- Bluetooth Mesh communication provides a wireless range of up to 150 feet.
- PSA Level 3 security delivers high-grade data protection.
- Clock-dial scheduling supports precise time-based control and automation.
- Personalized remote control supports user-specific lighting preferences.
- Automatic health-status updates are continuously reported to the server.
- Connected 0–10V luminaires can be broadcast-controlled through the mobile application.
- Built-in 20mA, 0–10V signal output is paired with a 20A relay.
- Five-second button reset and remote RESET + ON/OFF functions are supported.
- Commissioning remote and handheld remote support programming and user control.
- Online portal access supports planning, programming, location control, and energy data.
Construction
- Compact power pack node design
- IP20-rated enclosure
- IPEX antenna
- G1/2 threaded connections
Electrical
- Input Voltage: 120–347V
- Signal Output: Built-in 20mA, 0–10V
- Relay Rating: 20A
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: 32°F to 104°F
- IP Rating: IP20
Optics
Mounting
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app broadcast control of luminaires on the 0–10V control line
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
- Supports kinetic energy switches
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
