AC Powered BLE Power Pack Node (Amaya Pro) (06935)
The Amaya Pro 06935 is an AC-powered Bluetooth Mesh power pack node designed for connected lighting applications. The specification identifies it as suitable for high-bay applications and lists a wireless communication range of up to 100 feet.
The power pack supports phase-cut TRIAC dimming of a connected lighting load. Both forward-phase and reverse-phase dimming are identified in the specification sheet.
The 06935 supports PSA Level 3 security, personalized remote control, and automatic health-status reporting to the server. Connected controls can also be managed through the Amaya Pro mobile application and online portal.
Programming is available through a commissioning remote, while a handheld remote supports on-demand user preferences. The unit also supports a five-second button reset and remote reset through RESET + ON/OFF.
Phase-Cut TRIAC Dimming
Supports forward-phase and reverse-phase dimming of a connected lighting load.
Bluetooth Mesh Control
Provides Bluetooth Mesh communication at distances up to 100 feet.
Flexible Fixture Mounting
The application diagram shows mounting inside or outside the fixture.
Features & Benefits
- AC-powered Bluetooth Mesh power pack node.
- Supports phase-cut TRIAC dimming of a connected lighting load.
- Supports both forward-phase and reverse-phase dimming.
- Wireless communication range of up to 100 feet.
- PSA Level 3 security provides high-grade data protection.
- Personalized remote control supports user-specific lighting preferences.
- Automatic health-status updates are reported to the server.
- Five-second button reset and remote RESET + ON/OFF are supported.
- Programming is available through a commissioning remote.
- Handheld remote and online portal support additional programming and control.
Construction

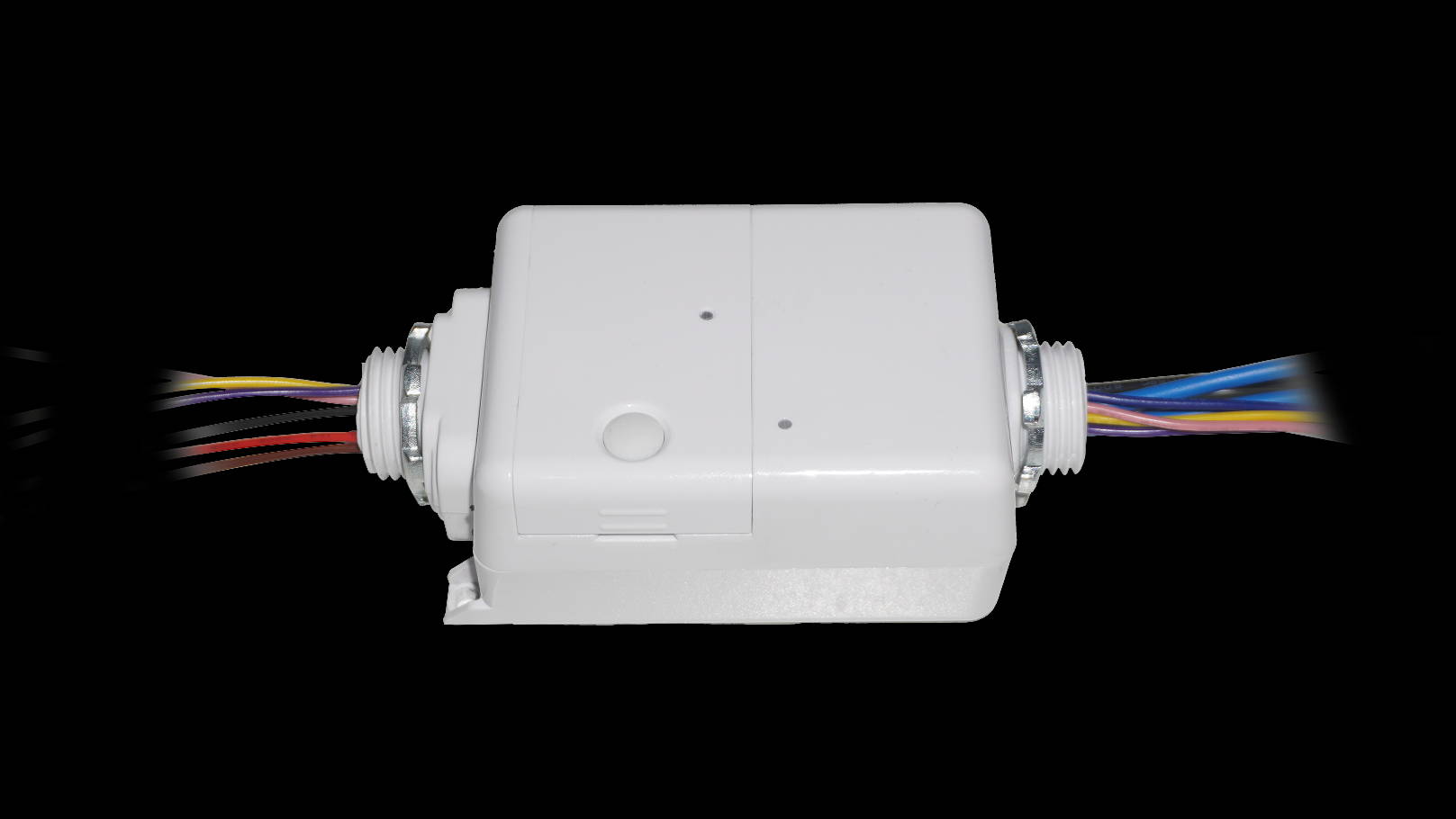

- Compact rectangular power pack node
- Indoor, IP20-rated design
- Threaded connections on both ends
Electrical
- Input Voltage: 120–277V
- Dimming Type: Phase-cut TRIAC
- Dimming Compatibility: Forward phase and reverse phase
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Operating Temperature: 32°F to 104°F
- IP Rating: IP20
Optics
Mounting
- Can be mounted inside the fixture
- Can be mounted outside the fixture using a nipple adapter
Controls
- Personalized remote control
- Mobile-application control
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
