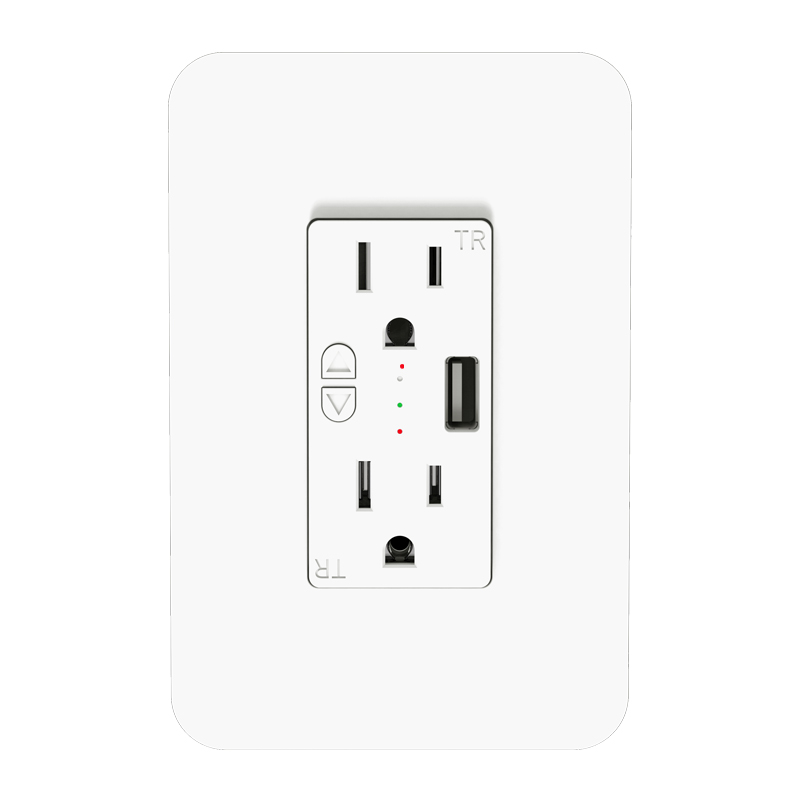

AC Powered BLE Wall Outlet (Amaya Pro) (06954)
The Amaya Pro 06954 is an AC-powered Bluetooth Mesh wall outlet designed for wall-mounted ON/OFF control of connected devices. The specification identifies it as suitable for office applications.
The wall outlet operates at 120V and provides a maximum wireless communication distance of 65 feet. Bluetooth Mesh connectivity allows the device to communicate with the Amaya Pro control system.
The outlet supports personalized remote control, automatic health-status reporting, programming through a commissioning remote, and on-demand control through a handheld remote.
The Amaya Pro online portal supports pre-planning, pre- and post-programming, location control, and energy-data access. The product diagram also identifies one app-controlled outlet, one uncontrolled outlet, and a USB charging port.
Connected-Device Control
Provides wall-mounted ON/OFF control for connected devices.
Bluetooth Mesh Connectivity
Supports wireless communication at distances up to 65 feet.
App and Remote Control
Supports mobile-app, commissioning-remote, handheld-remote, and online-portal control.
Features & Benefits
- Wall-mounted ON/OFF control for connected devices.
- Bluetooth Mesh communication provides a range of up to 65 feet.
- Designed for office applications.
- PSA Level 3 security provides high-grade data protection.
- Personalized remote control supports user-specific preferences.
- Automatic health-status updates are continuously reported to the server.
- Programming is available through a commissioning remote.
- Handheld remote supports on-demand user control.
- Online portal supports planning, programming, location control, and energy data.
- Includes one app-controlled outlet, one uncontrolled outlet, and a USB charging port.
Construction
- Wall-mounted outlet design
- IP20-rated design
- Two outlet receptacles
- Integrated USB charging port
Electrical
- Input Voltage: 120V
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 65 ft
- Operating Temperature: â14°F to 131°F
- IP Rating: IP20
- Life Span: More than 70,000 hours
Reset
- Press and hold the switchâs up and down buttons for five seconds to reset the outlet and enter quick-configuration mode.
- The indicator light should blink rapidly twice per second.
- When the indicator does not blink rapidly, hold the up and down buttons for 7â10 seconds.
Mounting
- Wall-mounted design
Controls
- Wall-mounted ON/OFF control for connected devices
- Mobile-app control
- Personalized remote control
- Programming through a commissioning remote
- Handheld remote available for on-demand preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
