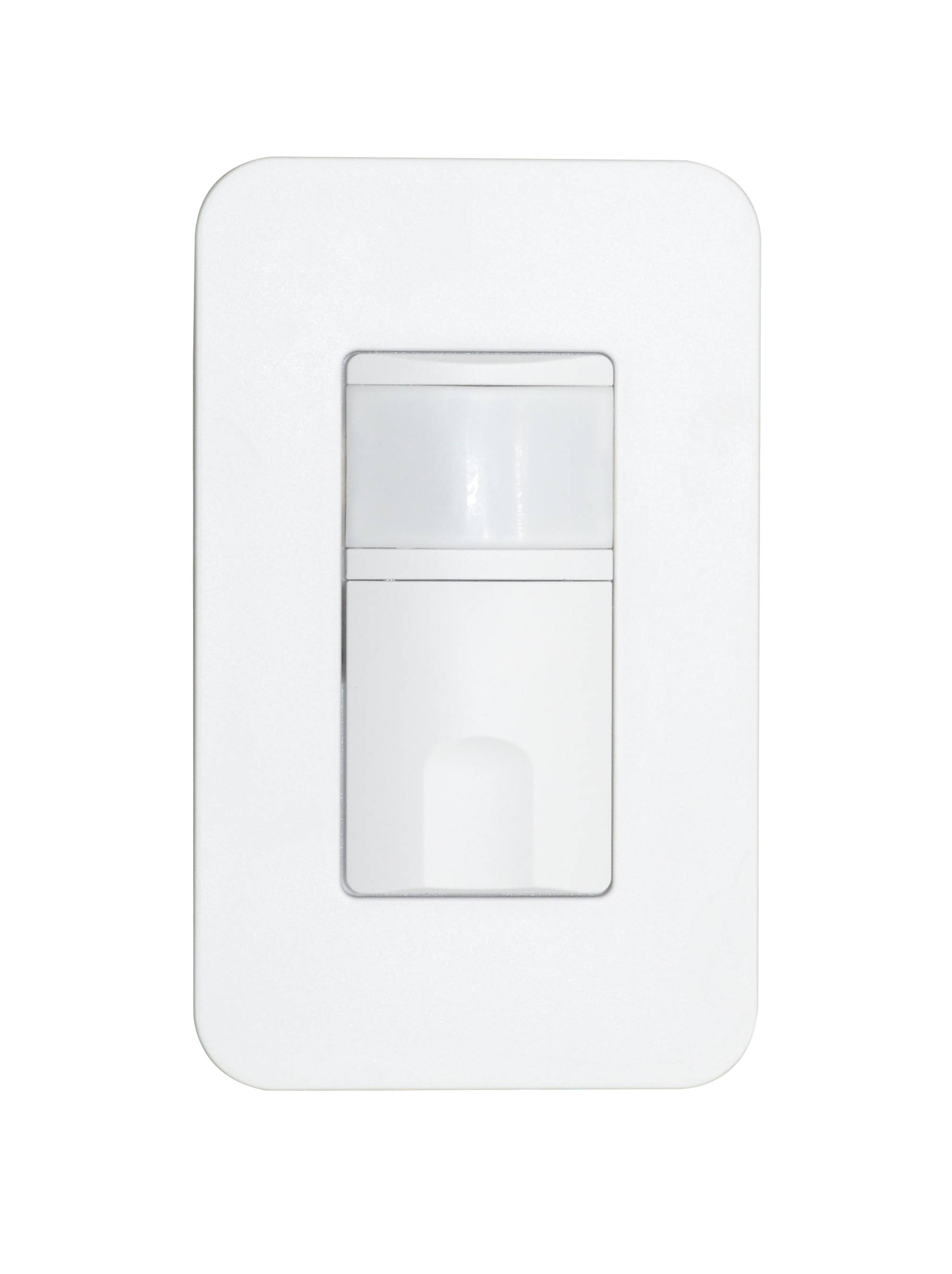

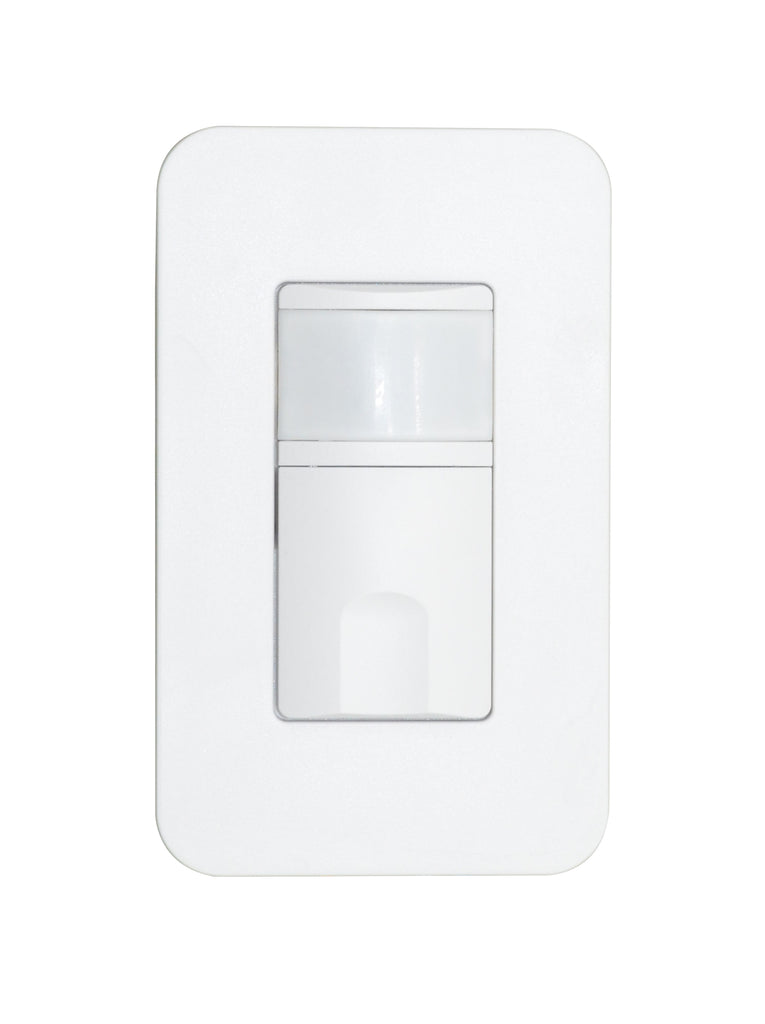

AC Powered BLE Controls PIR Wall Switch (Amaya Pro) (06951)
The Amaya Pro 06951 is an AC-powered PIR wall switch designed for office lighting applications. Its integrated wall-mounted motion sensor provides wide detection coverage with a 180° coverage pattern.
The wall switch operates from 120–277V at 50/60Hz. It includes a built-in 20mA, 0–10V analog signal output for dimming control of compatible luminaires.
Bluetooth Mesh connectivity provides wireless communication up to 100 feet. Luminaires connected to the 0–10V control line can be broadcast-controlled through the Amaya Pro mobile application.
The 06951 supports personalized remote control, automatic health-status reporting, a five-second button reset, remote reset through RESET + ON/OFF, commissioning-remote programming, handheld-remote control, and access through the Amaya Pro online portal.
PIR Wall-Mount Detection
Integrated PIR occupancy and vacancy sensing with a 180° coverage pattern.
120–277V Operation
AC-powered wall switch designed to operate from 120–277V at 50/60Hz.
Bluetooth Mesh Control
Wireless communication up to 100 feet with mobile and remote control options.
Features & Benefits
- PIR wall-mounted motion detection supports occupancy and vacancy sensing.
- Wide 180° detection coverage is designed for office applications.
- Bluetooth Mesh communication provides a wireless range up to 100 feet.
- PSA Level 3 security delivers high-grade protection for system data.
- Personalized remote control supports user-specific lighting preferences.
- Automatic health-status updates are continuously reported to the server.
- Connected 0–10V luminaires can be broadcast-controlled through the mobile application.
- Built-in 20mA, 0–10V analog output provides dimming control.
- Five-second button reset and remote RESET + ON/OFF are supported.
- Commissioning remote, handheld remote, and online portal provide programming and control options.
Construction
- Wall-mounted switch design
- Integrated PIR occupancy and vacancy sensor
- Integrated Fresnel lens
- IP20-rated design
Electrical
- Input Voltage: 120–277V
- Frequency: 50/60Hz
- Dimming Output: 20mA, 0–10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Operating Temperature: 32°F to 104°F
- IP Rating: IP20
Optics
- PIR wall-mounted motion detection
- Occupancy and vacancy sensing
- Wide detection coverage
- 180° coverage pattern
- Fresnel lens
Mounting
- Wall-mounted design
- Office application ready
- Mounting Height: Up to 4 ft
Controls
- Scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0–10V control line
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand preferences
- Online portal for planning, programming, location control, and energy data
- Time-delay control
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
