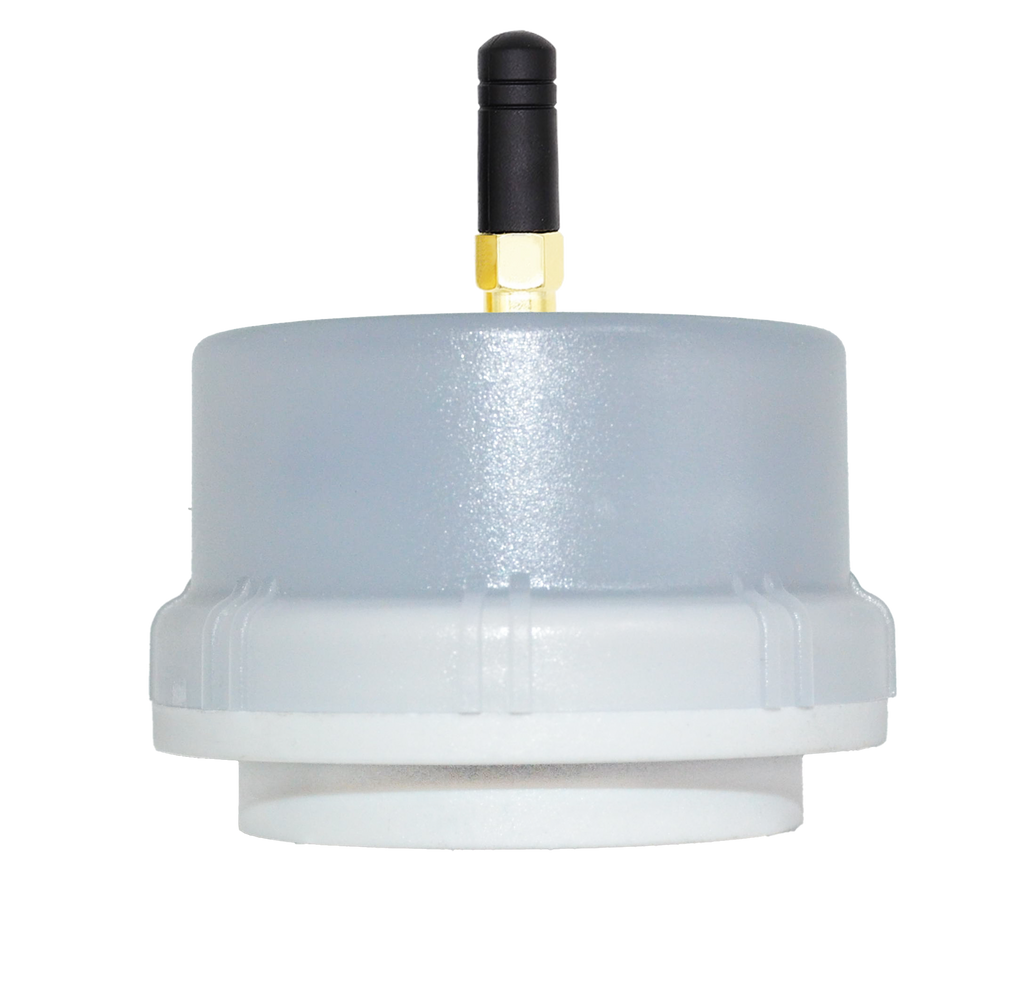

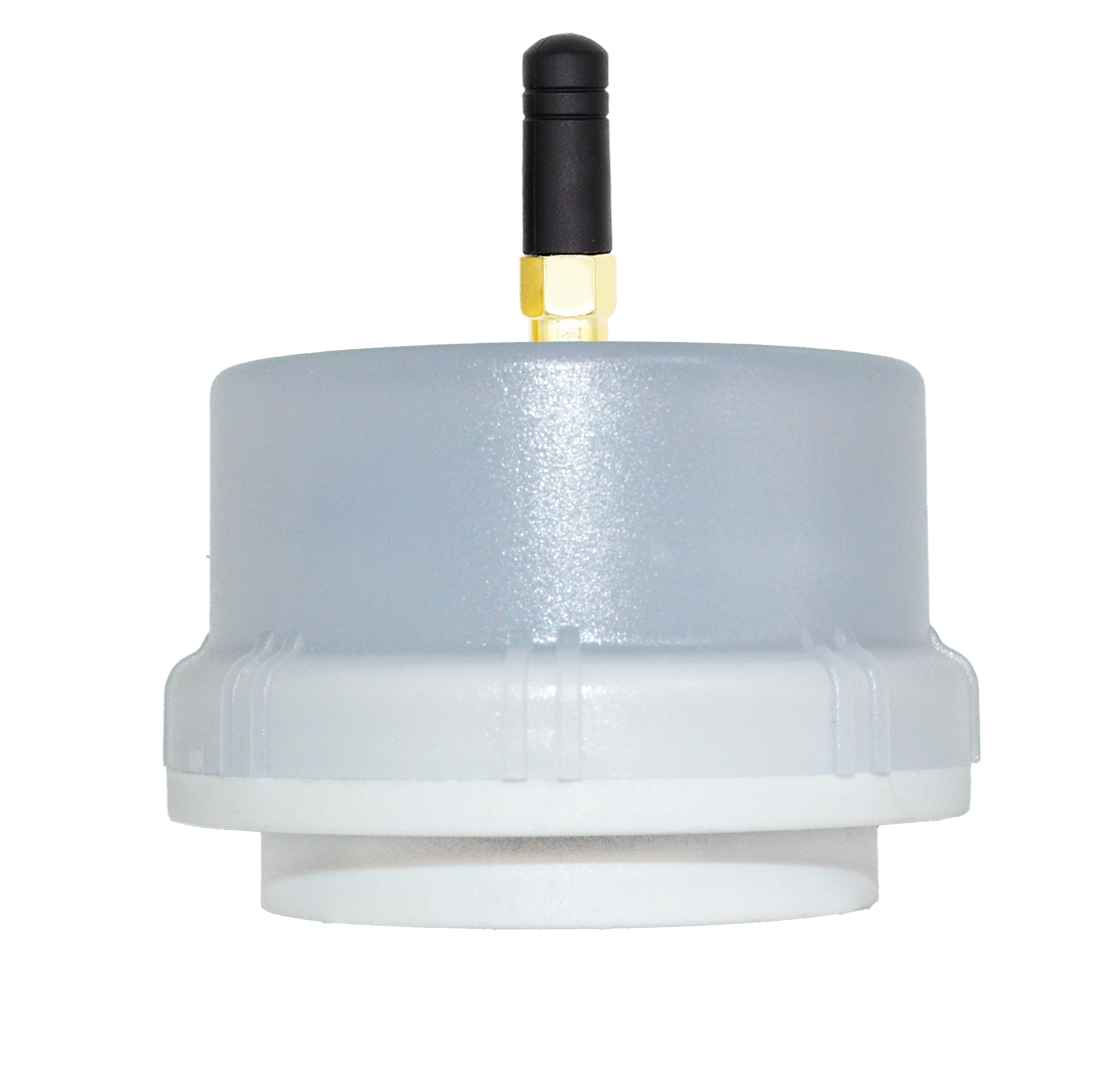

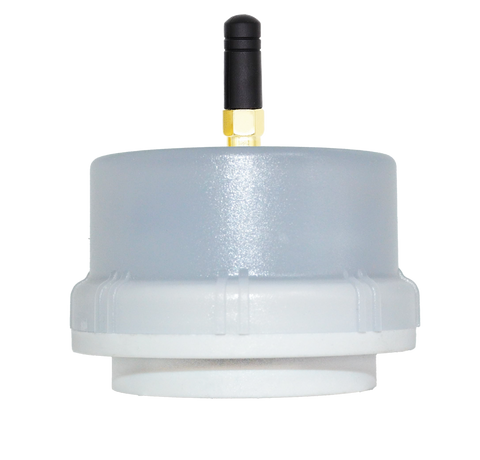

DC Powered BLE Controls Long Range Extender (Amaya Pro) (06970)
The Amaya Pro 06970 is a DC-powered Bluetooth Mesh long-range extender. The specification identifies it as suitable for high-bay applications and lists wide detection coverage with a 360° coverage pattern.
The extender operates from 12â24V and provides a maximum Bluetooth range of 328 feet. The technical specifications separately list a maximum communication distance of 150 feet.
The 06970 includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
The extender supports PSA Level 3 security, clock-dial scheduling, personalized remote control, automatic health-status reporting, magnetic reset, commissioning-remote programming, handheld-remote control, and the Amaya Pro online portal.
Long-Range Bluetooth
Maximum Bluetooth range of up to 328 feet.
Bluetooth Mesh Connectivity
Supports Bluetooth Mesh communication with a listed maximum communication distance of 150 feet.
0â10V Control
Built-in 20mA, 0â10V analog output supports connected lighting control.
Features & Benefits
- Long-range extender for the Amaya Pro Bluetooth Mesh system.
- Maximum Bluetooth range of up to 328 feet.
- Maximum communication distance listed as 150 feet.
- Bluetooth Mesh connectivity supports network communication.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling provides precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Magnetic reset and remote RESET + ON/OFF functions are supported.
- Commissioning remote, handheld remote, and online portal support programming and control.
Construction
- Compact round long-range extender design
- External antenna shown on the product
- IP65-rated design
- Four-port connection interface
Electrical
- Input Voltage: 12â24V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Bluetooth Range: 328 ft
- Maximum Communication Distance: 150 ft
- Operating Temperature: â40°F to 158°F
- IP Rating: IP65
Optics
- Wide detection coverage
- 360° coverage pattern
Mounting
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires connected to the 0â10V control line
- Magnetic reset with a five-second touch
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
