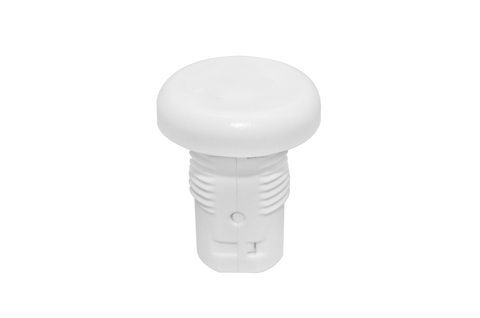

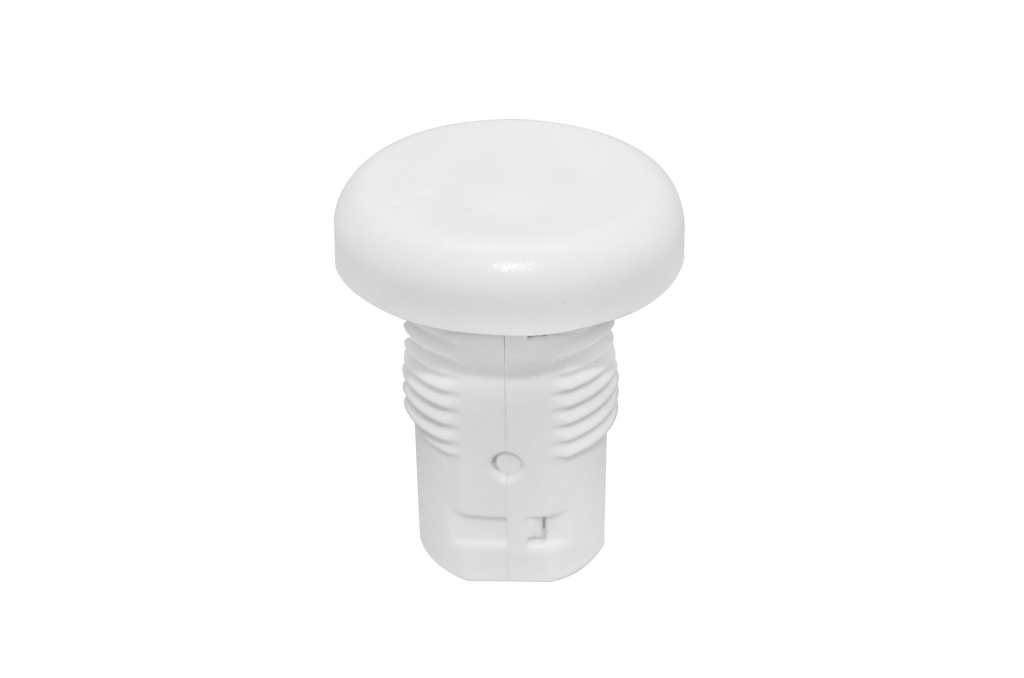

DC Powered BLE Controls Node (Amaya Pro) (06913)
The Amaya Pro 06913 is a DC-powered Bluetooth node designed to be paired with a full lighting control. The specification identifies it as suitable for high-bay applications and equipped with Bluetooth Mesh connectivity.
The node includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
The 06913 supports clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server. The specification lists a maximum Bluetooth range of 100 feet and a maximum communication distance of 150 feet.
Programming is available through a commissioning remote, while a handheld remote supports on-demand user preferences. A five-second button reset and remote reset through RESET + ON/OFF are also provided. The online portal supports pre-planning, programming, location control, and energy-data access.
Bluetooth Control Node
Designed to pair with a full Amaya Pro lighting control.
Wireless Communication
Maximum Bluetooth range of 100 feet and communication distance up to 150 feet.
0â10V Dimming Control
Built-in 20mA, 0â10V analog output supports connected lighting control.
Features & Benefits
- Bluetooth node designed to pair with a full lighting control.
- Bluetooth Mesh connectivity supports wireless network communication.
- Maximum Bluetooth range is listed as 100 feet.
- Maximum communication distance is listed as 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling provides precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Five-second button reset and remote RESET + ON/OFF are supported.
- Commissioning remote, handheld remote, and online portal provide programming and control options.
Construction

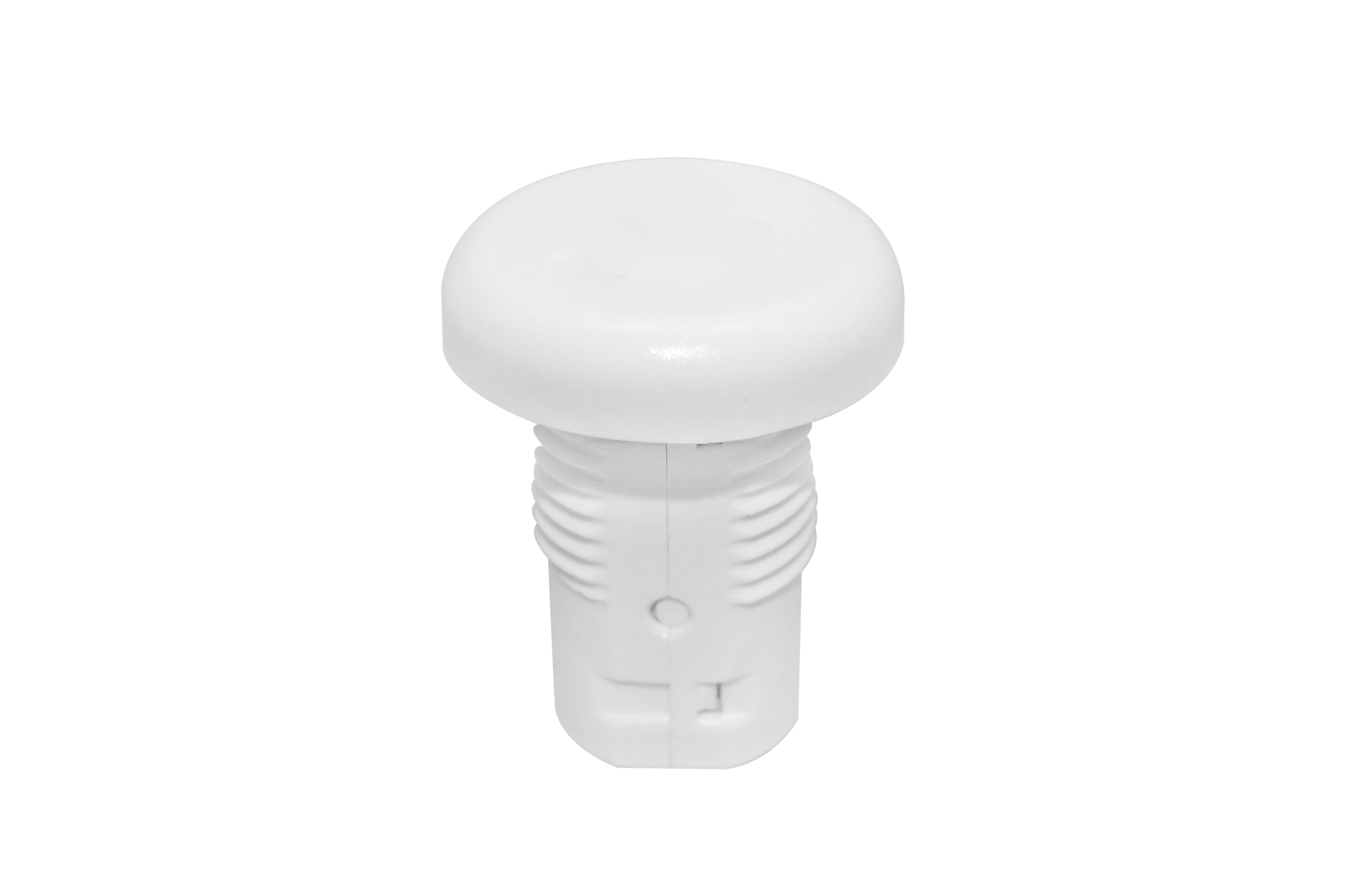

- Compact round node design
- IP65-rated design
- Integrated Bluetooth Mesh node
- XH2.54-3P connector
Electrical
- Input Voltage: 10â14V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Bluetooth Range: 100 ft
- Maximum Communication Distance: 150 ft
- IP Rating: IP65
- Operating Temperature: â4°F to 140°F
Optics
- OcuSense motion detection
- Wide detection coverage
- 360° coverage pattern
Mounting
- High-bay application ready
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
