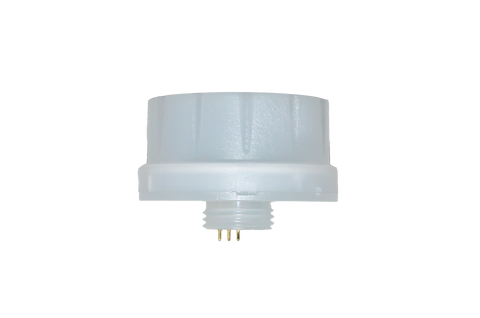

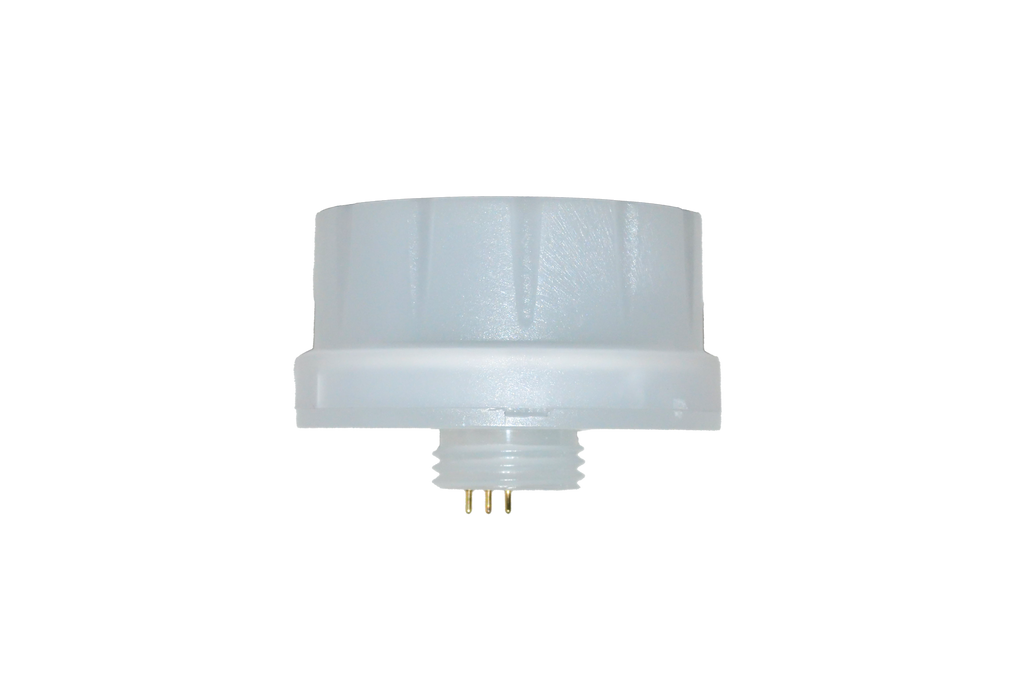

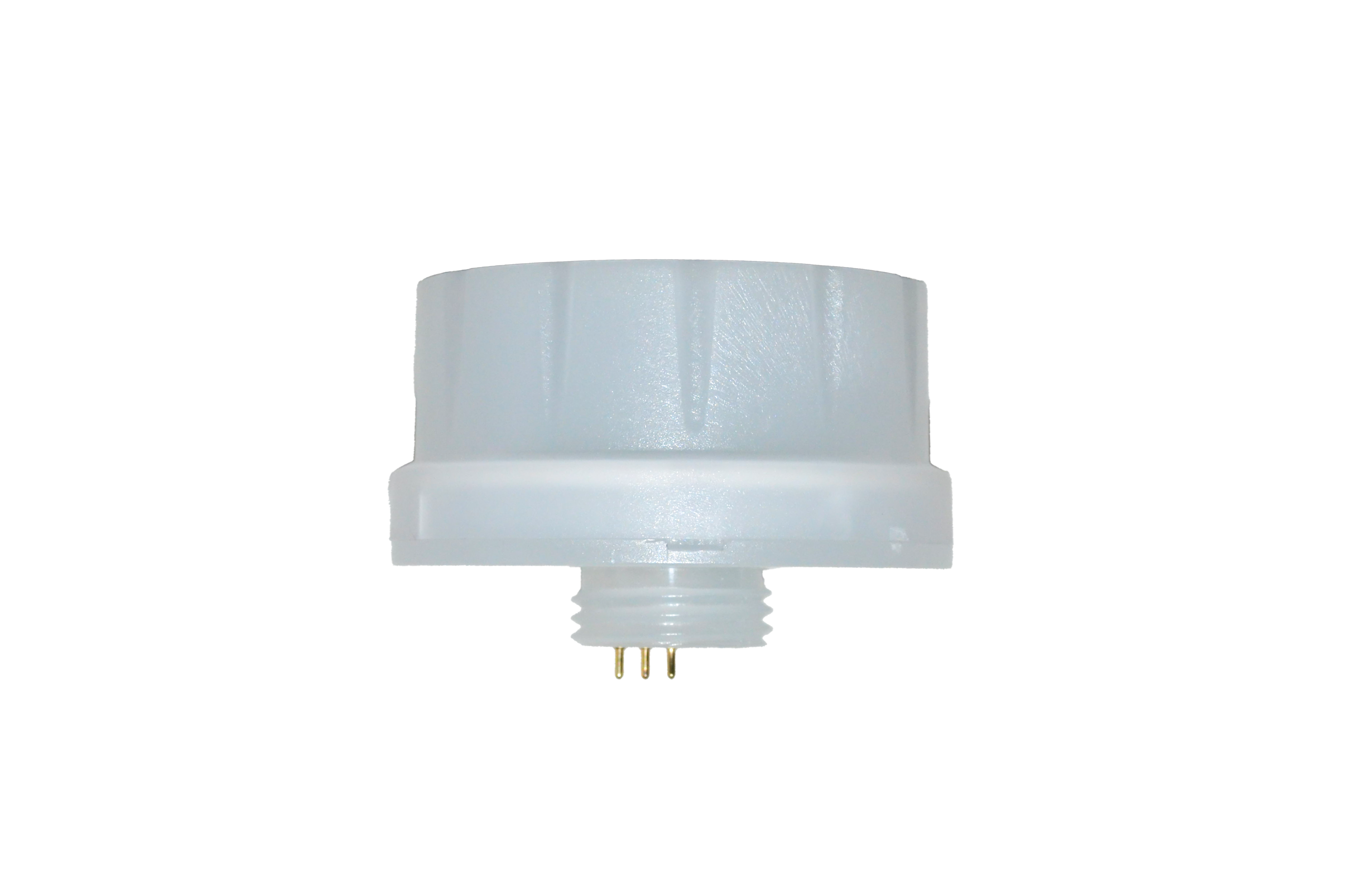

DC Powered BLE Controls OcuSense (Amaya Pro) (06911)
The Amaya Pro 06911 is a DC-powered lighting control featuring OcuSense motion detection. It is designed for indoor high-bay applications and provides wide detection coverage with a 360° coverage pattern at mounting heights up to 40 feet.
The controller includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06911 supports a five-second magnetic reset and remote reset through RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support programming, location control, and access to energy data.
OcuSense Motion Detection
Wide OcuSense detection coverage with a 360° coverage pattern.
High-Bay Applications
Supports high-bay installations with mounting heights up to 40 feet.
IP65 Bluetooth Mesh Control
IP65-rated control with Bluetooth Mesh communication up to 150 feet.
Features & Benefits
- OcuSense motion detection provides wide detection coverage.
- 360° coverage pattern supports high-bay applications.
- Suitable for mounting heights up to 40 feet.
- Bluetooth Mesh communication ranges up to 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling enables precise time-based lighting automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Five-second magnetic reset and remote RESET + ON/OFF are supported.
- Commissioning remote, handheld remote, and online portal provide programming and control options.
Construction
- Compact round sensor design
- Indoor, IP65-rated design
- Integrated OcuSense motion detection
- G1/2 threaded connection
Electrical
- Input Voltage: 12â24V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- IP Rating: IP65
- Operating Temperature: â40°F to 158°F
- Life Span: More than 70,000 hours
Optics
- OcuSense motion detection
- Wide detection coverage
- 360° coverage pattern
Mounting
- High-bay application ready
- Mounting Height: Up to 40 ft
- G1/2 threaded mounting connection
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second magnetic reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
