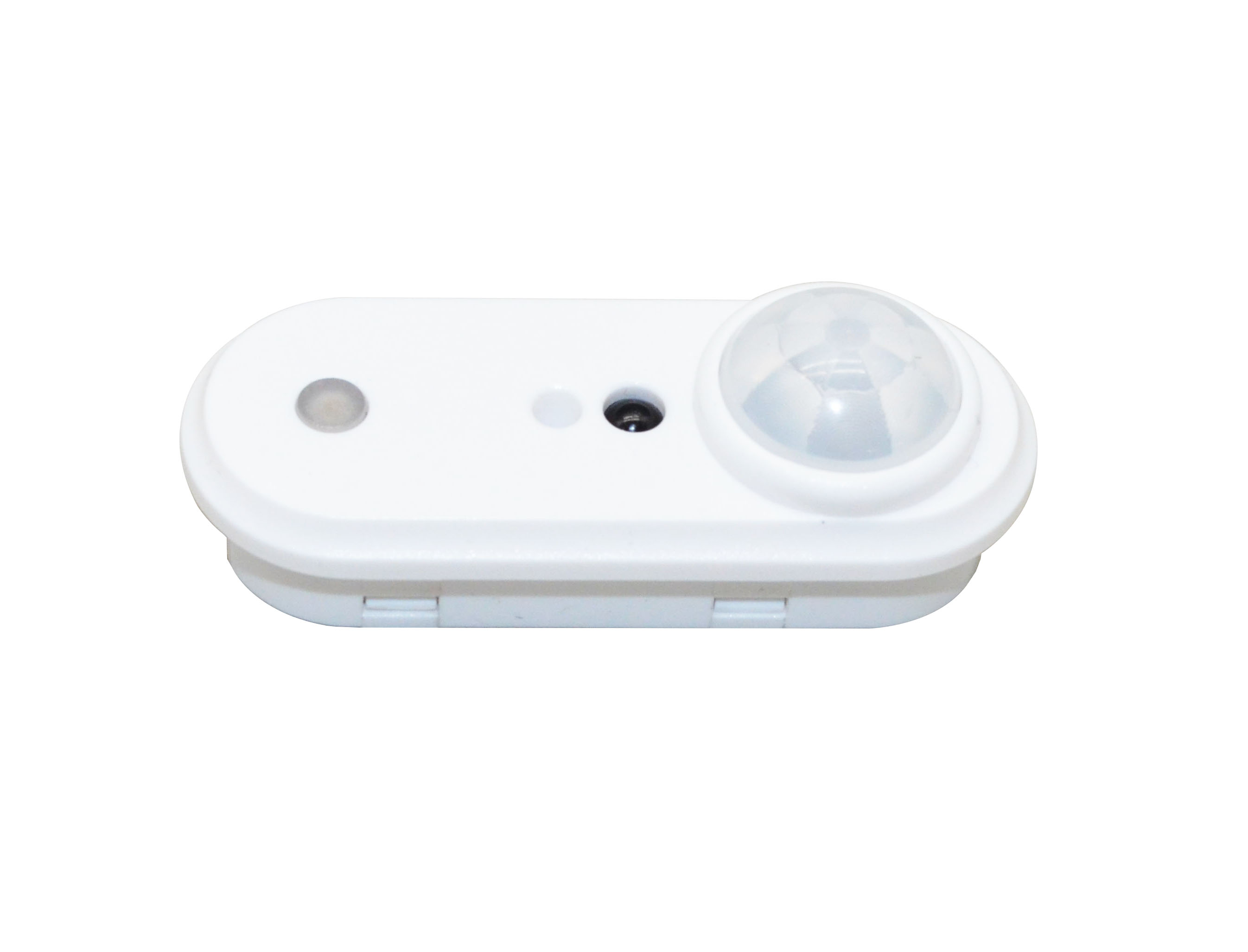

DC Powered BLE Controls PIR (Amaya Pro) (06903)



The Amaya Pro 06903 is a DC-powered lighting control equipped with PIR motion detection for indoor office and low-bay applications. It provides wide detection coverage with a 360-degree coverage pattern and supports mounting heights up to 13 feet.

The controller connects to compatible luminaires through a built-in 20mA, 0–10V analog signal output. All luminaires connected to the 0–10V control line can be broadcast-controlled using the Amaya Pro mobile application.

Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The system also supports clock-dial scheduling, personalized remote control, automatic device-health reporting, and programming through a commissioning remote.

The 06903 includes a five-second button reset and remote reset through RESET + ON/OFF. A handheld remote is available for on-demand user preferences, while the online portal supports pre-planning, pre- and post-programming, location control, and energy-data access.

Sale Off
DC Powered BLE Controls PIR (Amaya Pro) (06903)
DC Powered BLE Controls PIR (Amaya Pro) (06903)

Specs Sheet

IES Files & LM Reports

Instructions

How To Buy

7 Year

Warranty


This product is covered by a 7-year limited product warranty.



Bluetooth Mesh Connectivity


Secure Bluetooth Mesh networking provides wireless communication between connected lighting devices at distances of up to 150 feet.

PIR Motion Detection


Wide detection coverage with a 360-degree coverage pattern for office and low-bay applications.

Features & Benefits

  • PIR motion detection
  • Wide detection coverage
  • 360-degree coverage pattern
  • Bluetooth Mesh connectivity
  • Wireless communication range up to 150 feet
  • Clock-dial scheduling
  • Personalized remote control
  • Automatic health-status reporting
  • Mobile control of connected 0–10V luminaires
  • Built-in 20mA, 0–10V analog output
  • Five-second button reset
  • Remote reset through RESET + ON/OFF
  • Programming through a commissioning remote
  • Handheld remote available for on-demand control
  • Online portal for planning, programming, location control, and energy data

Construction

  • Compact, low-profile sensor design
  • Indoor, IP20-rated design
  • Integrated PIR motion sensor
  • PH2.0-4P connector

Electrical

  • Input Voltage: 10–14V
  • Dimming Output: 20mA, 0–10V analog signal
  • Communication Protocol: Bluetooth Mesh
  • Maximum Communication Distance: 150 ft
  • IP Rating: IP20
  • Operating Temperature: −4°F to 104°F
  • Life Span: More than 70,000 hours

Optics

Mounting

    • Suitable for office and low-bay applications
    • Mounting Height: Up to 13 ft
    • 360° coverage pattern
    • Wide detection coverage for major and minor motion

    • Controls

    • Clock-dial scheduling
    • Personalized remote control
    • Mobile-app control of luminaires connected to the 0–10V control line
    • Five-second button reset and remote reset using RESET + ON/OFF
    • Programming through a commissioning remote
    • Handheld remote available for on-demand user preferences
    • Online portal for planning, programming, location control, and energy data

    Operations

    • It has a Life Span of over 70,000 hours

    Warranty

    • 7-Year Product Warranty

    Listings & Certifications
