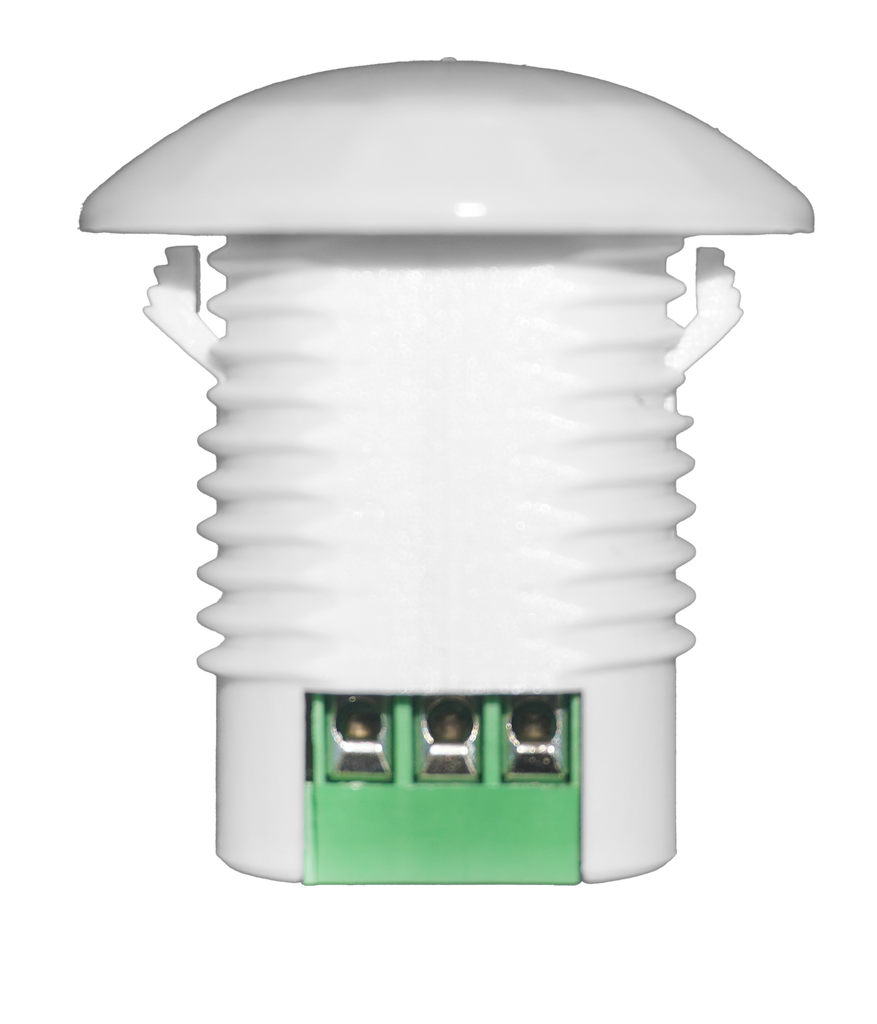

DC Powered BLE Controls PIR (Amaya Pro) (06904)
The Amaya Pro 06904 is a DC-powered lighting control featuring PIR motion detection for indoor low-bay applications. It provides wide detection coverage with a 360-degree coverage pattern and supports mounting heights up to 15 feet.
The controller includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication distances up to 150 feet. The product also supports clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06904 can be programmed through a commissioning remote, while an optional handheld remote provides on-demand user control. A magnetic reset can be performed by touching the side of the sensor for five seconds. The online portal supports planning, programming, location control, and energy-data access.
7 Year
Warranty
This product is covered by a 7-year limited product warranty.
Bluetooth Mesh Connectivity
Secure Bluetooth Mesh networking provides wireless communication between connected lighting devices at distances of up to 150 feet.
PIR Motion Detection
Wide motion-detection coverage with a 360-degree coverage pattern.
Features & Benefits
- PIR motion detection provides responsive occupancy-based lighting control.
- Wide 360° detection coverage supports indoor low-bay applications.
- Suitable for mounting heights up to 15 feet.
- Bluetooth Mesh connectivity supports wireless communication up to 150 feet.
- PSA Level 3 security provides high-grade protection for system data.
- Built-in 20mA, 0â10V analog output enables reliable dimming control.
- Clock-dial scheduling allows precise time-based lighting automation.
- Connected luminaires can be broadcast-controlled through the Amaya Pro mobile app.
- Magnetic reset is activated by touching the side of the sensor for five seconds.
- Commissioning remote, handheld remote, and online portal support programming, control, and energy-data access.
Construction
- Compact cylindrical sensor design
- Indoor, IP20-rated design
- Integrated PIR motion sensor
- Integrated Bluetooth Mesh connectivity
Electrical
- Input Voltage: 10â14V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- IP Rating: IP20
- Operating Temperature: â4°F to 140°F
Optics
- PIR motion detection
- Wide detection coverage
- 360-degree coverage pattern
Mounting
- Low-bay application ready
- Mounting Height: Up to 15 ft
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Magnetic reset by touching the side of the sensor for five seconds
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
