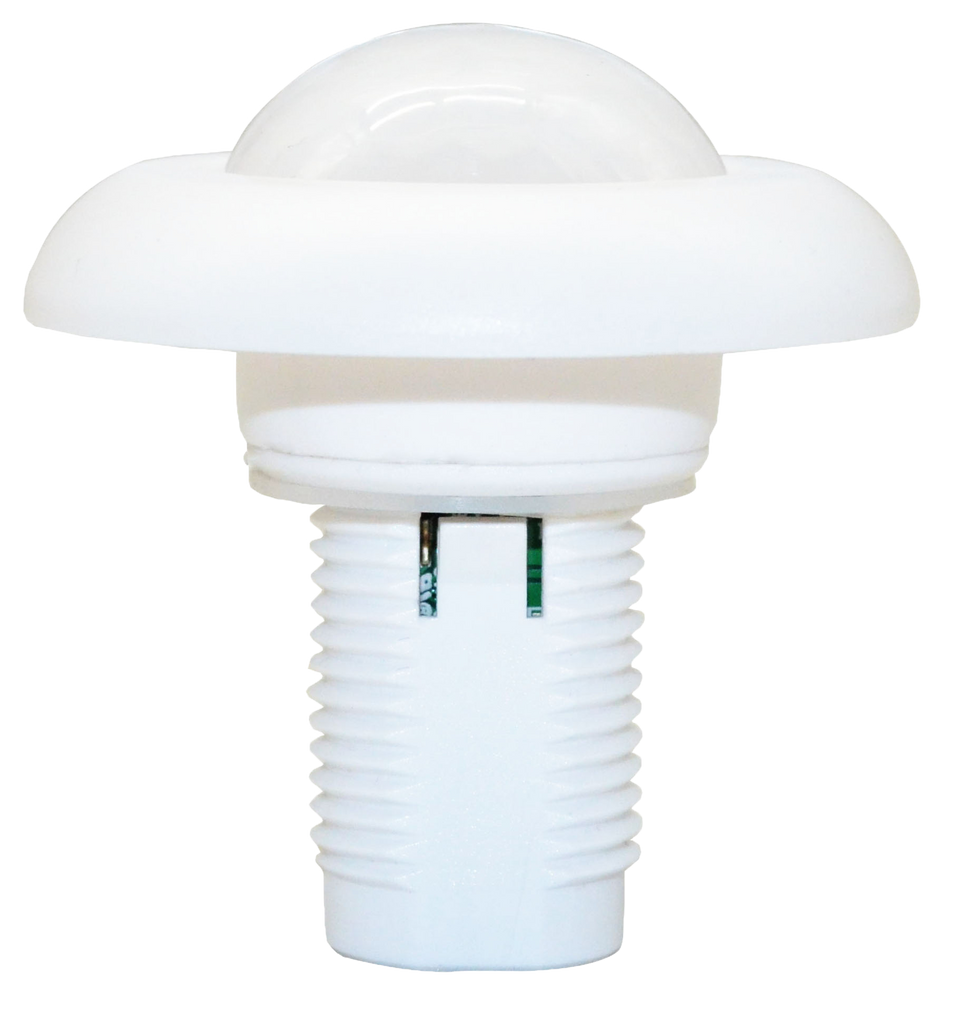

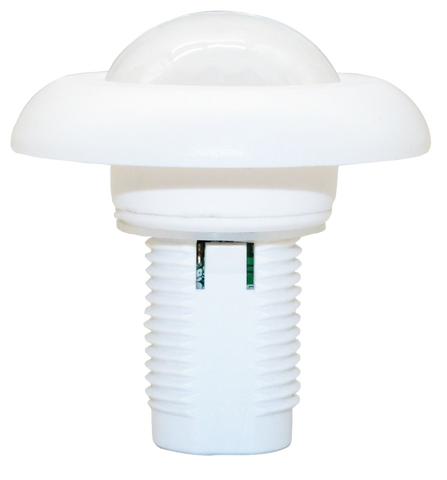

DC Powered BLE Controls PIR (Amaya Pro) (06905)
The Amaya Pro 06905 is a DC-powered lighting control featuring PIR motion detection for indoor high-bay applications. It provides wide detection coverage with a 360° coverage pattern and supports mounting heights up to 40 feet.
The controller includes a built-in 20mA, 0â10V analog signal output for reliable dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The system also supports clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06905 can be programmed through a commissioning remote, while a handheld remote is available for on-demand user preferences. A magnetic reset can be performed by touching the side of the sensor for five seconds. The online portal supports pre-planning, pre- and post-programming, location control, and energy-data access.
Mounting Up to 40 Feet
Designed for high-bay installations with mounting heights up to 40 feet.
Bluetooth Mesh Control
Wireless communication up to 150 feet with mobile, remote, and portal-based control.
High-Bay PIR Detection
Wide 360° motion-detection coverage for indoor high-bay applications.
Features & Benefits
- PIR motion detection supports occupancy-based lighting control.
- Wide 360° coverage is designed for high-bay applications.
- Supports mounting heights up to 40 feet.
- Bluetooth Mesh communication operates at distances up to 150 feet.
- PSA Level 3 security protects system communications and data.
- Built-in 20mA, 0â10V analog output provides dimming control.
- Clock-dial scheduling enables precise time-based lighting automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Magnetic reset is activated by touching the side of the sensor for five seconds.
- Commissioning remote, handheld remote, and online portal support programming and control.
Construction
- Compact high-bay sensor design
- Indoor, IP20-rated design
- Integrated PIR motion sensor
- PH2.0-4P connector
Electrical
- Input Voltage: 10â14V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- IP Rating: IP20
- Operating Temperature: â4°F to 104°F
- Life Span: More than 70,000 hours
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
Mounting
- High-bay application ready
- Mounting Height: Up to 40 ft
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app broadcast control of luminaires on the 0â10V control line
- Magnetic reset by touching the side of the sensor for five seconds
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
