DC Powered BLE Controls PIR (Amaya Pro) (06914)
The Amaya Pro 06914 is a DC-powered lighting control featuring PIR motion detection for indoor office and low-bay applications. It provides wide detection coverage with a 360° coverage pattern and supports mounting heights up to 13 feet.
The controller includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06914 supports a five-second magnetic reset and remote reset using RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support additional control, programming, location management, and energy-data access.
Mounting Up to 13 Feet
Designed for office and low-bay installations with mounting heights up to 13 feet.
Bluetooth Mesh Control
Wireless communication at distances up to 150 feet.
360° PIR Detection
Wide motion-detection coverage for office and low-bay applications.
Features & Benefits
- PIR motion detection provides wide detection coverage.
- 360° coverage pattern supports detection around the sensor.
- Designed for office and low-bay applications.
- Supports mounting heights up to 13 feet.
- Bluetooth Mesh communication ranges up to 150 feet.
- PSA Level 3 security protects system communications.
- Built-in 20mA, 0â10V analog output provides dimming control.
- Clock-dial scheduling supports precise time-based lighting automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Magnetic reset, remote reset, commissioning remote, handheld remote, and online portal provide multiple control options.
Construction

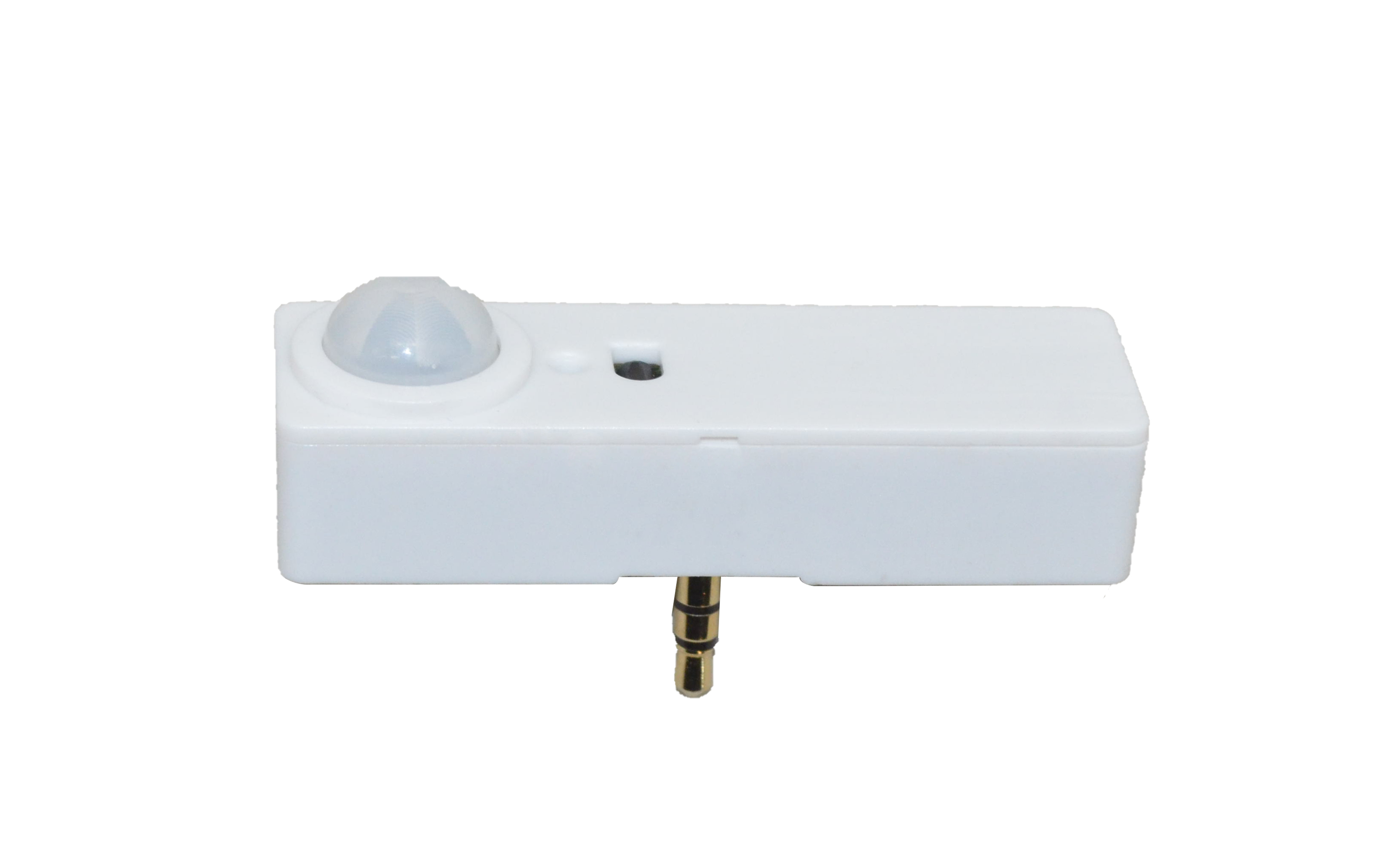

- Compact, low-profile rectangular sensor design
- Indoor, IP20-rated design
- Integrated PIR motion sensor
- Integrated Bluetooth Mesh connectivity
Electrical
- Input Voltage: 10â14V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- IP Rating: IP20
- Operating Temperature: â4°F to 140°F
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
Mounting
- Office and low-bay application ready
- Maximum Mounting Height: Up to 13 ft
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app broadcast control of luminaires on the 0â10V control line
- Five-second magnetic reset
- Remote reset using RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
