AC Powered BLE Controls PIR (Amaya Pro) (06936)
The Amaya Pro 06936 is a DC-powered, ceiling-mounted lighting control featuring PIR motion detection. It provides wide detection coverage with a 360° coverage pattern and is designed for office and low-bay applications with mounting heights up to 13 feet.
The controller includes a built-in 20mA, 0â10V analog signal output for dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.
Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06936 supports a five-second magnetic reset and remote reset through RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support programming, location control, and energy-data access.
Ceiling-Mounted PIR Control
Ceiling-mounted PIR motion detection with wide 360° coverage.
Office and Low-Bay Applications
Supports ceiling mounting at heights up to 13 feet.
Bluetooth Mesh Connectivity
Wireless communication distances up to 150 feet.
Features & Benefits
- PIR motion detection provides occupancy-based lighting control.
- Wide 360° detection coverage supports office and low-bay applications.
- Ceiling-mounted design supports mounting heights up to 13 feet.
- Bluetooth Mesh communication provides a range of up to 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports dimming control.
- Clock-dial scheduling enables precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Five-second magnetic reset and remote RESET + ON/OFF are supported.
- Commissioning remote, handheld remote, and online portal support programming and control.
Construction

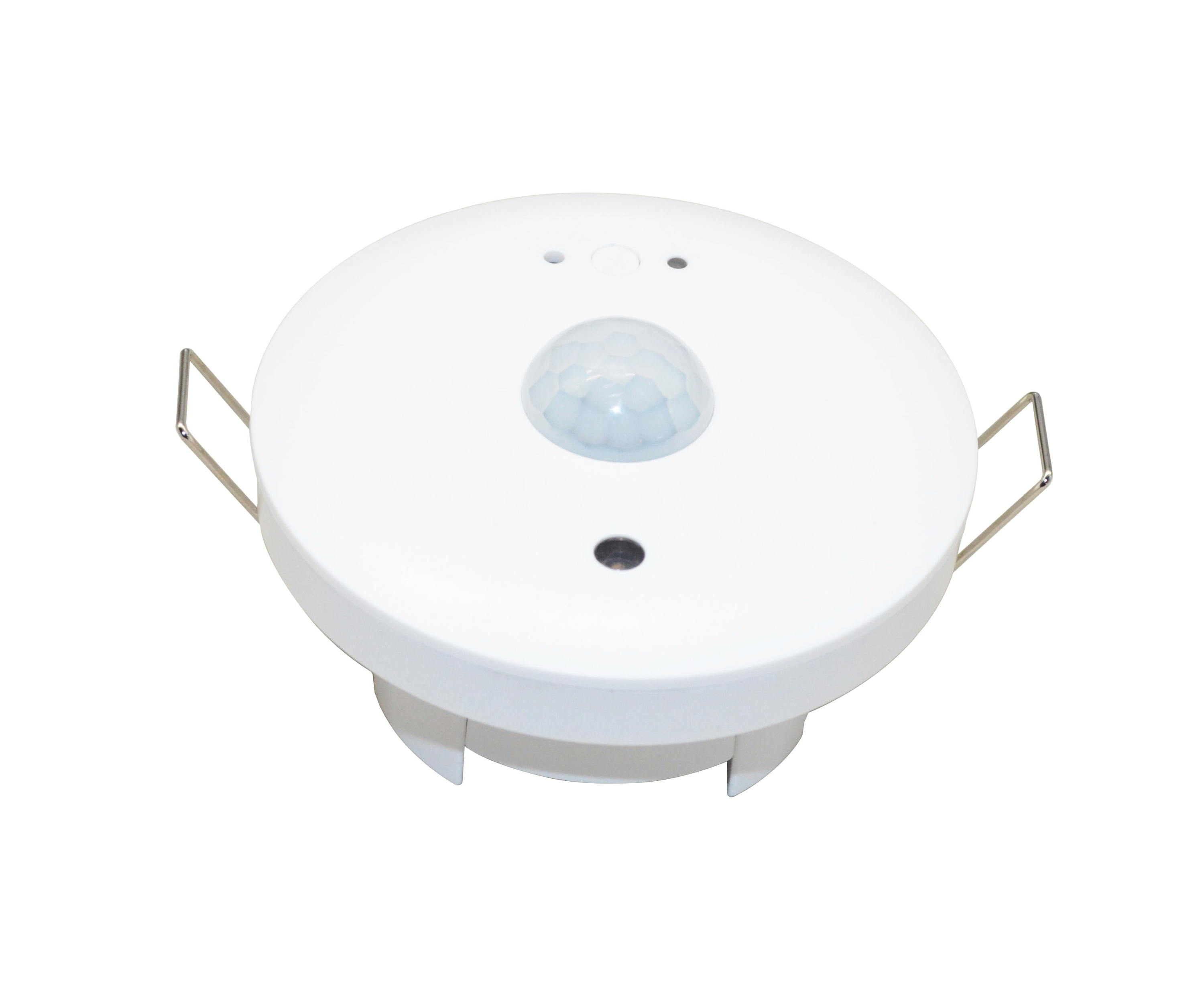

- Round ceiling-mounted sensor design
- Integrated PIR motion sensor
- Spring-clip ceiling mounting
- IP20-rated design
Electrical
- Input Voltage: 12â24V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: â4°F to 140°F
- IP Rating: IP20
- Life Span: More than 70,000 hours
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
Mounting
- Ceiling-mounted design
- Office and low-bay application ready
- Mounting Height: Up to 13 ft
- Spring clips hold the device in the ceiling opening
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second magnetic reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
