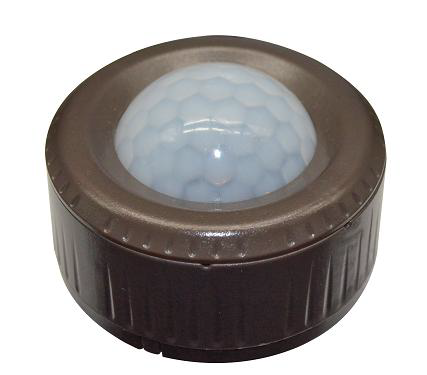

DC Powered Outdoor BLE Controls PIR (Amaya Pro) (06921)
The Amaya Pro 06921 is a DC-powered outdoor lighting control featuring PIR motion detection. It provides wide detection coverage with a 360° coverage pattern and is designed for high-bay applications with mounting heights up to 40 feet. The specification also identifies photocell functionality.
The controller includes a built-in 20mA, 0â10V analog signal output for reliable dimming control. Luminaires connected to the 0â10V control line can be broadcast-controlled through the Amaya Pro mobile application.Bluetooth Mesh connectivity provides wireless communication at distances up to 150 feet. The controller also supports PSA Level 3 security, clock-dial scheduling, personalized remote control, and automatic health-status reporting to the server.
The 06921 supports a five-second button reset and remote reset through RESET + ON/OFF. Programming is available through a commissioning remote, while a handheld remote and online portal support programming, location control, and access to energy data.
Outdoor PIR Detection
Wide PIR motion-detection coverage with a 360° coverage pattern.
High-Bay Applications
Supports outdoor high-bay installations with mounting heights up to 40 feet.
IP65 Bluetooth Mesh Control
IP65-rated control with wireless communication up to 150 feet.
Features & Benefits
- PIR motion detection provides wide occupancy-detection coverage.
- 360° coverage pattern supports outdoor high-bay applications.
- Suitable for mounting heights up to 40 feet.
- Photocell functionality is included among the listed control functions.
- Bluetooth Mesh communication provides a range of up to 150 feet.
- PSA Level 3 security provides high-grade data protection.
- Built-in 20mA, 0â10V analog output supports reliable dimming control.
- Clock-dial scheduling enables precise time-based control and automation.
- Connected luminaires can be broadcast-controlled through the mobile application.
- Button reset, remote reset, commissioning remote, handheld remote, and online portal provide multiple control options.
Construction
- Compact round outdoor sensor design
- IP65-rated design
- Integrated PIR motion sensor
- Four-port connection interface
Electrical
- Input Voltage: 12â24V
- Dimming Output: 20mA, 0â10V analog signal
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 150 ft
- Operating Temperature: â4°F to 140°F
- IP Rating: IP65
Optics
- PIR motion detection
- Wide detection coverage
- 360° coverage pattern
- Photocell functionality
Mounting
- High-bay application ready
- Mounting Height: Up to 40 ft
Controls
- Clock-dial scheduling
- Personalized remote control
- Mobile-app control of luminaires on the 0â10V control line
- Five-second button reset
- Remote reset through RESET + ON/OFF
- Programming through a commissioning remote
- Handheld remote available for on-demand user preferences
- Online portal for planning, programming, location control, and energy data
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
