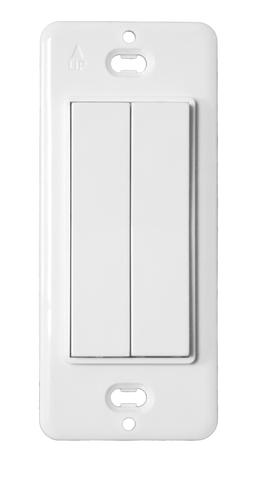

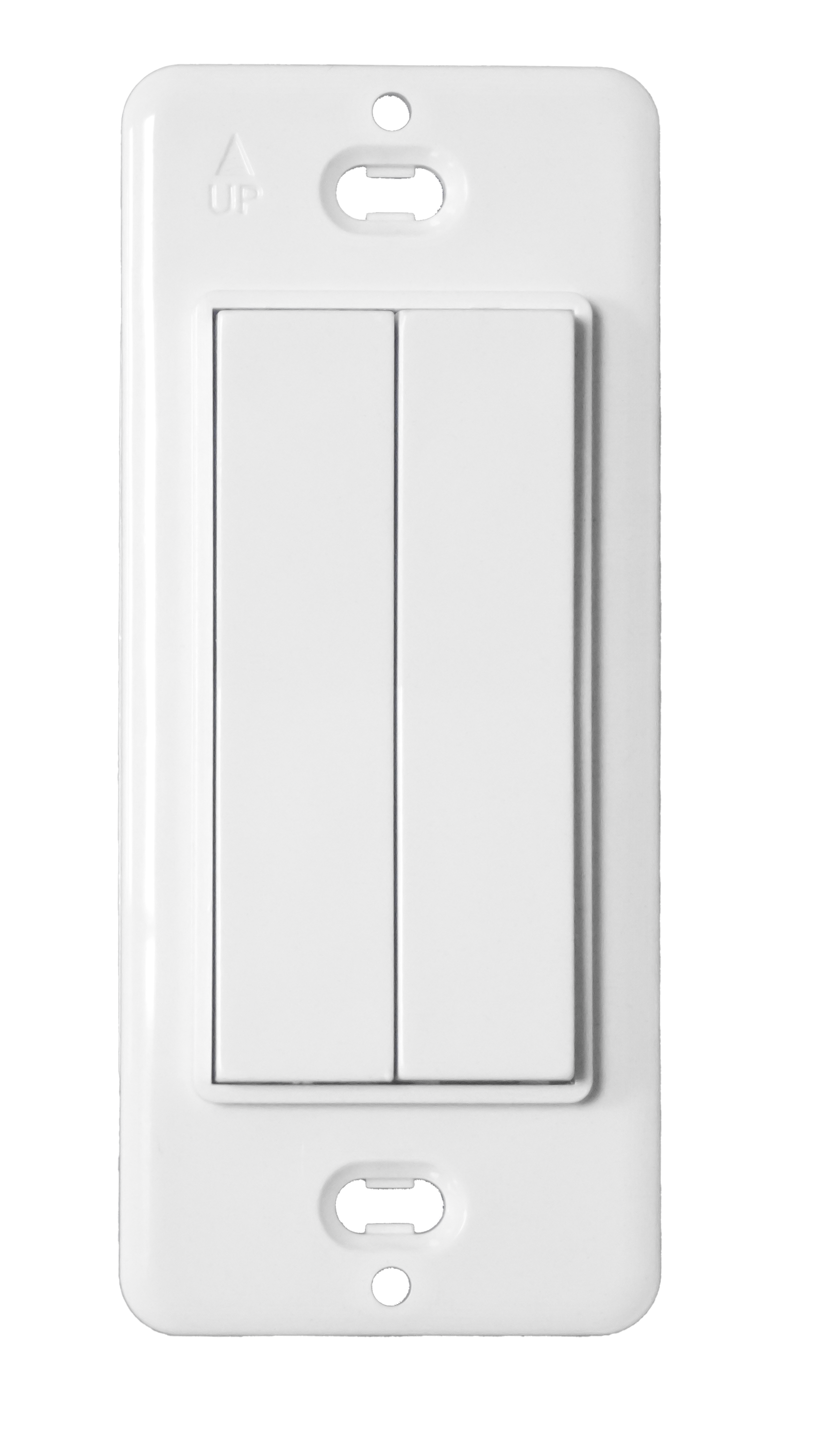

Self Powered BLE Wall Switch (Amaya Pro) (06953)
The Amaya Pro 06953 is a self-powered Bluetooth Mesh wall switch designed for wall-mounted ON/OFF and dimming control. It is suitable for office applications and is compatible with an existing standard U.S.-size wall frame.
The switch is powered by a built-in nano generator, eliminating the need for wiring or battery replacement. Its ultra-long operating design supports more than 200,000 button pushes.
The four-button interface provides lighting ON/OFF, dimming, scene recall, and cool-white and warm-white adjustment. Bluetooth Mesh connectivity supports 2.4GHz global operation with wireless communication distances up to 100 feet.
The 06953 also supports personalized remote control, automatic health-status reporting, mobile-app control, commissioning-remote programming, handheld-remote control, and access through the Amaya Pro online portal.
Self-Powered Operation
Built-in nano generator requires no wiring or batteries.
Four-Button Lighting Control
Provides ON/OFF, dimming, scene recall, and white-light adjustment.
Bluetooth Mesh Connectivity
Supports 2.4GHz operation and wireless communication up to 100 feet.
Features & Benefits
- Self-powered by a built-in nano generator.
- Requires no wiring or battery replacement.
- Provides wall-mounted ON/OFF and dimming control.
- Four-button design supports lighting and color-temperature adjustments.
- Ultra-long lifespan supports more than 200,000 button pushes.
- Bluetooth Mesh communication provides a range of up to 100 feet.
- Supports 2.4GHz global operation.
- Standard size is compatible with an existing U.S.-size frame.
- Integrated onboard antenna supports wireless communication.
- Mobile app, commissioning remote, handheld remote, and online portal support programming and control.
Construction
- Four-button wall-switch design
- Built-in nano generator
- Standard size compatible with an existing U.S.-size frame
- Integrated onboard antenna
Electrical
- Input: Self-powered by a built-in nano generator
- Communication Protocol: Bluetooth Mesh
- Maximum Communication Distance: 100 ft
- Wireless Operation: 2.4GHz
- Operating Temperature: 32°F to 104°F
- IP Rating: IP20
Optics
Mounting
- Wall-mounted design
- Compatible with an existing standard U.S.-size frame
Controls
- Upper-left button turns the lights on.
- Press and hold the upper-left button to increase light intensity.
- Lower-left button turns the lights off.
- Press and hold the lower-left button to decrease light intensity.
- CW button recalls a scene and increases cool-white output when held.
- WW button recalls a scene and increases warm-white output when held.
- Personalized remote control
- Mobile-app, commissioning-remote, handheld-remote, and online-portal control
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 7-Year Product Warranty
Listings & Certifications
