AC Powered BLE PIR Occ Control (LiteLinQ) (06269)
The LiteLinQ 06269 03 is an AC-powered indoor lighting control with integrated PIR motion detection. Its fixture-mounted design provides a 360Ā° coverage pattern and supports mounting heights up to 40 feet.
The controller operates from 100ā277V and includes a built-in node with an integrated 0ā10V output. Its single-channel configuration provides one dimmable control output for compatible lighting.
The integrated daylight-harvesting function automatically adjusts light according to ambient levels. High-end trim, bi-level dimming, occupancy sensing, and scheduling are also shown as supported control functions.
High-Bay PIR Detection
Infrared motion detection with 360Ā° coverage at mounting heights up to 40 feet.
328-Foot Communication Range
Supports wireless communication at distances up to 328 feet.
Integrated 0ā10V Control
Built-in node provides one dimmable 0ā10V output.
Features & Benefits
- PIR sensing detects motion through infrared.
- Daylight harvesting automatically adjusts lighting to ambient levels.
- A 360Ā° coverage pattern supports detection around the sensor.
- Fixture-mounted design supports mounting heights up to 40 feet.
- Wireless communication operates at distances up to 328 feet.
- Remote lighting control is available through the app.
- The built-in node provides an integrated 0ā10V output.
- Single-channel operation provides one dimmable control output.
Construction

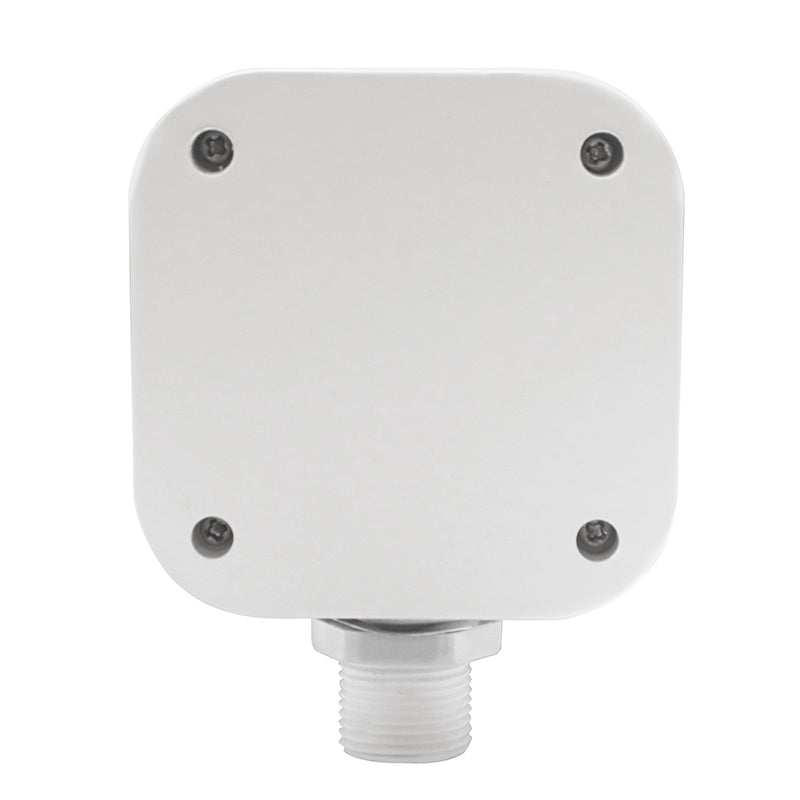

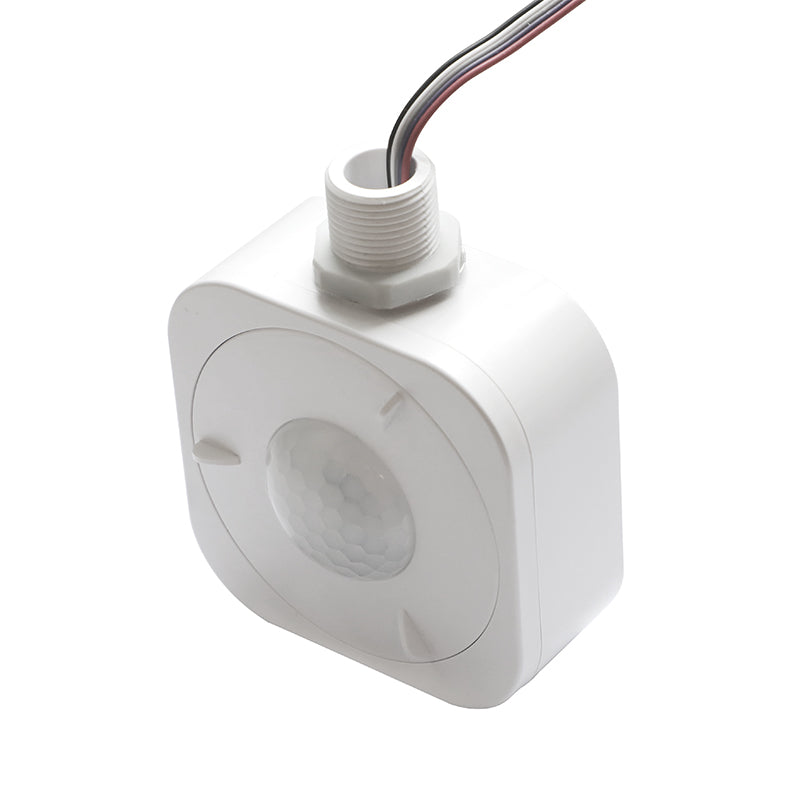

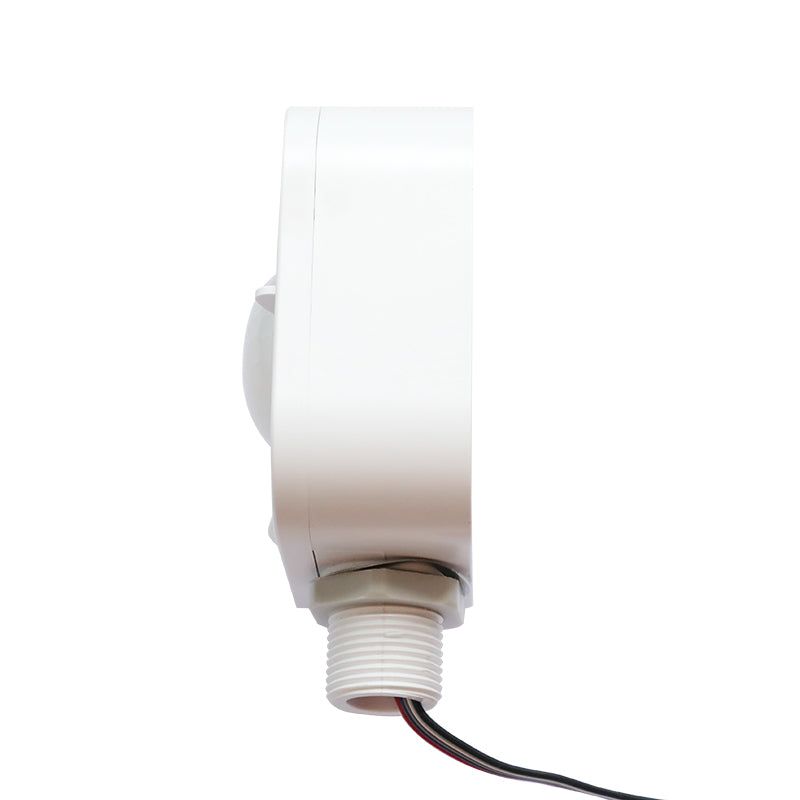

- Square fixture-mounted control design

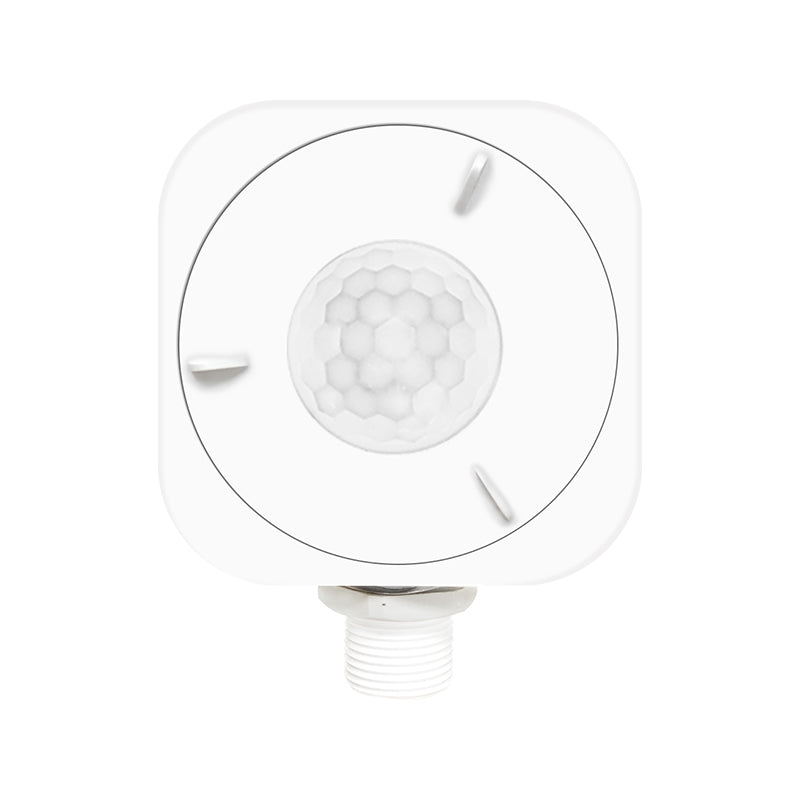

- Integrated PIR motion sensor
- Integrated built-in control node
- IP20-rated indoor design
Electrical
- Operating Voltage: 100ā277V
- Control Output: Integrated 0ā10V output
- Channels: One dimmable output
- Maximum Communication Distance: 328 ft
- Operating Temperature: ā4Ā°F to 140Ā°F
- IP Rating: IP20
Optics
- PIR infrared motion detection
- Daylight harvesting with automatic light adjustment
- 360Ā° coverage pattern
- Installation detection diagram shows approximately 65Ā° coverage on each side
- Wall-installation diagram shows approximately 50Ā° coverage on each side
- Detection diagrams use scales extending to 12m or 39 ft
Mounting
- Fixture-mounted design
- Indoor application
- Mounting Height: Up to 40 ft
Controls
- LiteLinQ app control
- PIR occupancy sensing
- Daylight harvesting
- High-end trim
- Bi-level dimming
- Scheduling
- Single-channel 0ā10V dimming
Operations
- More than 50,000 hours
Warranty
- 5-Year Product Warranty
