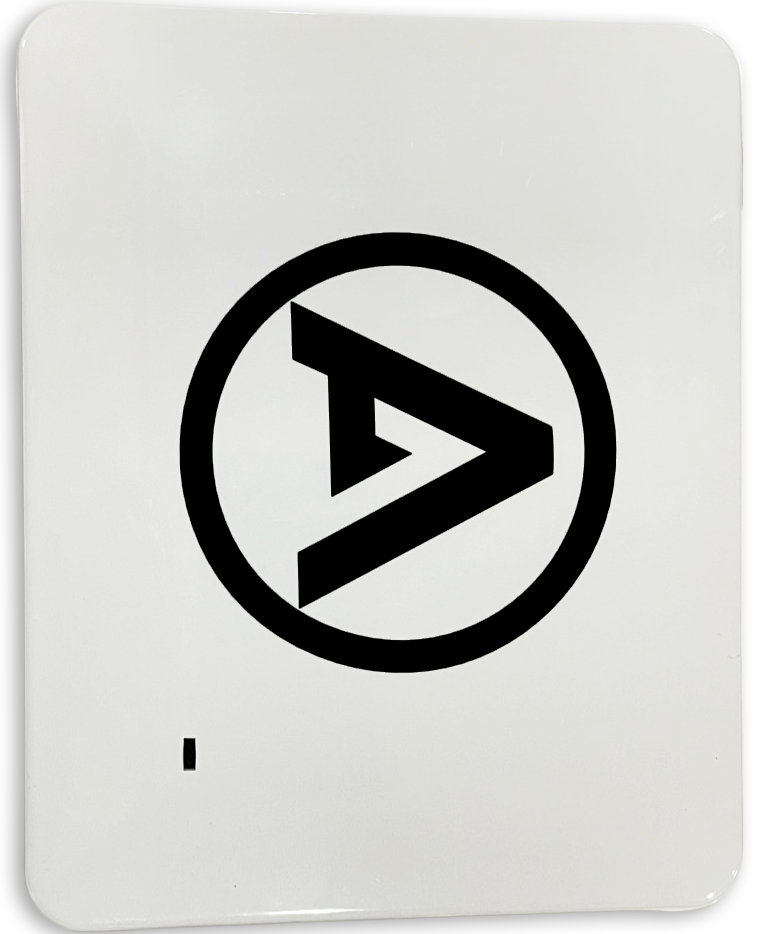

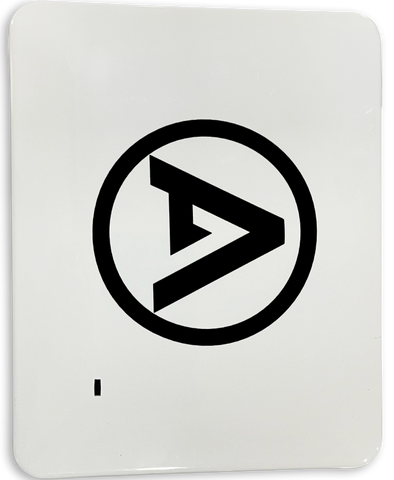

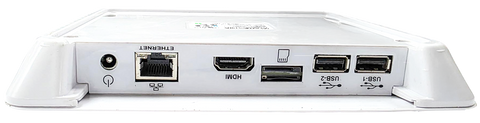

AC Powered BLE Wall Mount Gateway (Amaya Pro) (06995)
The Amaya Pro 06995 is a wall-mounted gateway designed for connected smart-lighting systems. It combines Bluetooth, Wi-Fi, and Ethernet communication and supports up to 500 connected devices.
The gateway is powered by a DC 12V, 2A adapter and provides a maximum communication distance of 200 feet. It includes 8GB of eMMC storage, 2GB of LPDDR3 memory, and Bluetooth scanning capacity of up to 200 BLE packets per second.
Wi-Fi connectivity supports remote power monitoring and wireless control. The gateway supports IEEE 802.11b/g/n wireless operation, 2.4GHz and 5GHz frequency bands, router and repeater modes, WPA/WPA2-PSK security, and optional 4G mobile-network connectivity.
The 06995 supports single-channel dimming and scene control, HTTP and MQTT communication using SSL/TLS, and over-the-air firmware upgrades. Its BLE module includes a built-in power amplifier, while the flexible FPC antenna supports wireless communication within the connected Amaya Pro system.
Supports Up to 500 Devices
Provides gateway connectivity and management for up to 500 connected devices.
Bluetooth, Wi-Fi and Ethernet
Combines three communication methods for connected smart-lighting control.
Remote Management
Supports remote power monitoring, wireless controls, and over-the-air firmware upgrades.
Features & Benefits
- Supports connectivity for up to 500 devices.
- Bluetooth, Wi-Fi, and Ethernet provide multiple communication options.
- Wi-Fi connectivity enables remote power monitoring and wireless control.
- Bluetooth scanning capacity supports up to 200 BLE packets per second.
- A built-in BLE power amplifier provides enhanced sensitivity.
- Single-channel dimming and scene control are supported.
- Over-the-air firmware upgrades provide remote software updating.
- Router and repeater network modes support flexible network configuration.
- HTTP and MQTT protocols are supported with SSL/TLS security.
- Optional 4G mobile-network connectivity provides an additional connection option.
Construction
- Compact wall-mounted gateway enclosure
- Flexible integrated FPC antenna
- Hook holes provided for hanging
- IP20-rated design
Electrical, Communication & Wireless Performance
- Power: DC 12V, 2A adapter
- Storage / Memory: 8GB eMMC / 2GB LPDDR3
- BLE Scanning: Up to 200 packets per second
- Communication Range: Up to 200 ft
- Protocols: Bluetooth, Wi-Fi, and Ethernet
- Wi-Fi: IEEE 802.11b/g/n; 2.4GHz and 5GHz
- Network Modes: Router and repeater
- Security: WPA/WPA2-PSK
- Ethernet: 10/100 with IEEE 802.3af support
- Optional Connectivity: 4G mobile network
- Transmit Power: Bluetooth 3dBm; Wi-Fi 17dBm
- Receive Sensitivity: Bluetooth â92dBm; Wi-Fi â98dBm
- Sub-Channels / Bandwidth: 14 / 20MHz
- Operating Temperature: â13°F to 149°F
- IP Rating: IP20
Optics
Mounting
- Wall-mounted gateway design

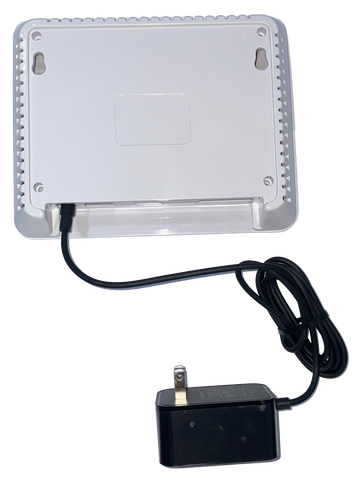

- Hook holes are provided on the rear of the gateway for hanging
Controls, Connectivity and Management
- Amaya Pro web and mobile app operation
- Remote power monitoring
- Wireless smart-lighting control
- Single-channel dimming
- Scene control
- Bluetooth device communication
- Wi-Fi connectivity
- Ethernet connectivity
- Router and repeater operation
- HTTP with SSL/TLS support
- MQTT with SSL/TLS support
- Over-the-air firmware upgrades
- Optional 4G mobile-network connectivity
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 10-Year Product Warranty
Listings & Certifications
