Battery Powered BLE Wall Switch (Amaya Pro) (06950)
The Amaya Pro 06950 is a battery-powered Bluetooth Mesh wall switch designed for lighting and room-control applications. It includes eight dedicated keys for ON/OFF, automatic mode, brightness adjustment, correlated color-temperature adjustment, and scene selection.
The switch is powered by two CR2032 coin-cell batteries connected in parallel at a nominal 3V. Its ultra-low sleep current and 5â7mA working current provide a listed battery life of approximately 7â10 years.
Bluetooth 5.1 Mesh communication operates in the 2.4GHz ISM band and provides a maximum wireless-link distance of 100 feet. Messages can be relayed through compatible powered Bluetooth Mesh nodes to extend coverage beyond one direct wireless link.
The 06950 supports up to 20 programmable scenes for lighting presets and room functions. LED feedback confirms button presses and provides a low-battery warning, while a long press on any key places the switch into Amaya app registration mode.

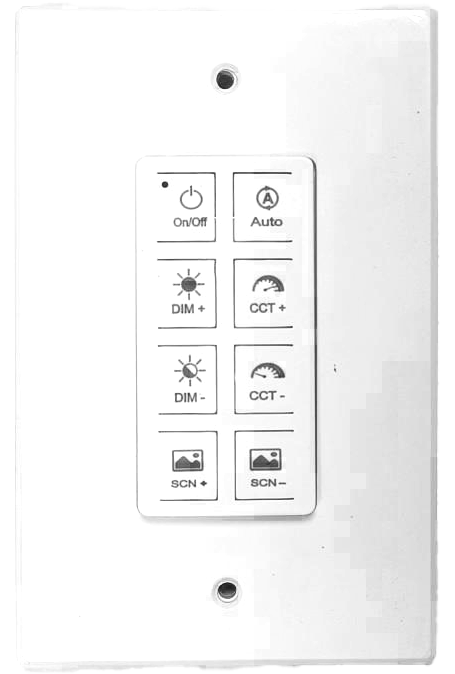

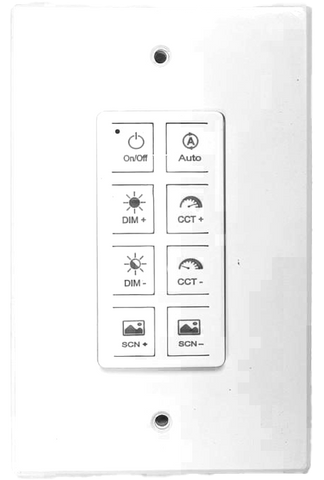

Eight Dedicated Control Keys
Provides ON/OFF, automatic mode, dimming, CCT adjustment, and scene control.
7â10 Year Battery Life
Dual CR2032 batteries support the listed extended operating period.
Removable Magnetic Mount
Mounts to a magnetic wall plate and can be removed for handheld control.
Features & Benefits
- Bluetooth 5.1 Mesh provides wireless lighting-control communication.
- Maximum communication distance is up to 100 feet per wireless link.
- Eight dedicated keys provide ON/OFF, Auto, DIM+, DIMâ, CCT+, CCTâ, SCN+, and SCNâ control.
- Up to 20 programmable scenes support lighting presets and room functions.
- Two CR2032 coin-cell batteries provide a nominal 3V power supply.
- Ultra-low sleep current below 0.1”A supports a listed battery life of 7â10 years.
- LED feedback confirms button presses and provides a low-battery warning.
- Magnetic wall-plate mounting allows the switch to be removed for remote-control use.
- Compatible powered Bluetooth Mesh relay nodes can retransmit messages for extended network coverage.
- The switch is designed for retrofit use with standard Decora wall plates.
Construction
- Eight-key wall-switch design

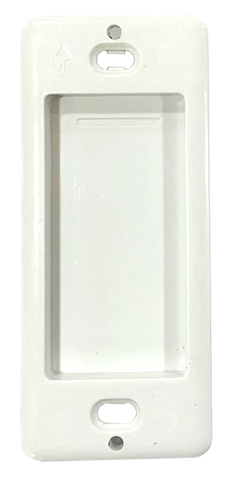

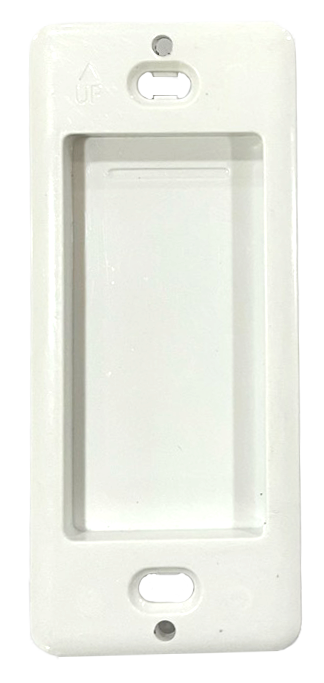

- Magnetic wall plate with removable switch
- Compatible with standard Decora wall plates
- IP20-rated design
Electrical
- Input Voltage: DC 3V
- Battery Type: Two CR2032 coin cells connected in parallel
- Battery Life: Approximately 7â10 years
- Communication Protocol: Bluetooth Mesh
- Bluetooth Version: Bluetooth 5.1
- Wireless Frequency: 2.4GHz ISM band
- Maximum Communication Distance: 100 ft
Technical Specifications
- Operating Temperature: 32°F to 86°F
- IP Rating: IP20
- Sleep Current: Below 0.1”A
- Working Current: 5â7mA
Mounting
- Magnetic wall-plate mounting
- Compatible with standard Decora wall plates
- Switch can be removed from the wall plate for handheld use
Controls, Scenes & Commissioning
- ON/OFF: Turn lighting on or off.
- Auto: Activate automatic or sensor-based mode.
- DIM+ / DIMâ: Adjust brightness.
- CCT+ / CCTâ: Adjust color temperature.
- SCN+ / SCNâ: Select programmed scenes.
- Supports up to 20 scenes.
- LED confirms button presses and warns of low battery.

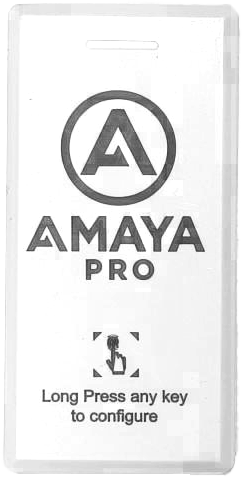

- Long-press any key to enter app-registration mode.
Operations
- It has a Life Span of over 70,000 hours
Warranty
- 10-Year Product Warranty
Listings & Certifications
